BOMAG BM1300/35 Cold Planer

BOMAG BM1300/35 Cold Planer

The maneuverability and compact design of the BM1300/35 cold planer means that it is intelligently designed for targeted removal of road and floor pavements under confined conditions.

Maximum Productivity

The innovative design of the milling drum, tool holder system and cutting tools ensures maximum transfer of forces into the asphalt.

Mobility & Extended Reach

The long, height adjustable conveyor belt can be pivoted by 45 degrees to either side. This ensures high flexibility in combination with the truck.

Always the Right Torque

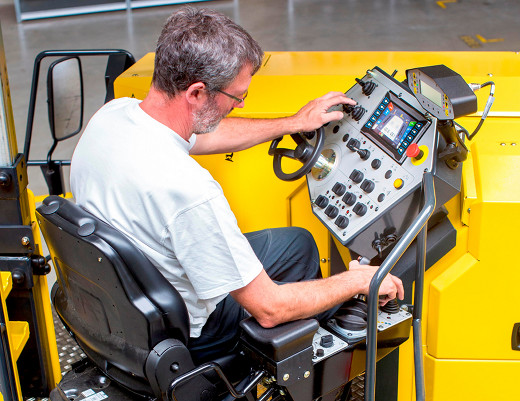

Using a control on the front panel the operator can change between three application-specific settings for the milling speed.

Quality Components

The optimized arrangement of the holders on the milling drum is the key to the superior milling quality and high efficiency of the BM1300/35 planers.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

Main Specs

  • Operating Weight 52469LBS
  • Horsepower 350HP
  • Emission Rating Tier 4 Final
  • Milling Width 51.2 in

Engine

  • Engine Make/Model MTU (Mercedes) / 1000 6R
  • Net Torque 1400LBF/FT
  • Rated Speed 2200rpm
  • Displacement 470in3

Drivetrain

  • Transmission Type Hydrostatic
  • Max Forward Speed 4.6mph
  • Working Speed 34.9 yds/min
  • Fuel Tank Capacity 158 gal
  • Fuel Consumption @ Rated Power 0.345 lb/hph
  • Drive Configuration 4 tracks
  • Track Shoe Width 10.5in

Performance

Dimensions

  • Operating Length - Conveyor Extended 44ft 11in
  • Transport Length - Conveyor Folded 36ft
  • Transport Length - Base Machine 20ft 2in
  • Max Width - Tracked 8ft 4in
  • Transport Width 7ft 8in
  • Max Conveyor Clearance Height 18ft 8in
  • Transport Height - Conveyor Folded 9ft 10in

Performance

  • Cutting Radius- Right Side 5ft 11in
  • Cutting Radius- Left Side 14ft 5in
  • Milling Width 51.1
  • Milling Depth 12.9in
  • Rotor Diameter 38.5in
  • Rotor Line Spacing 0.5in
  • Number of Rotor Tools 121

Conveyor System

  • Length 26ft 5in
  • Width 25.5in
  • Conveyor Clearance Height 18ft 8in
  • Conveyor Swing - Each Way 45°
  • Discharge Speed 106 yd³/min
