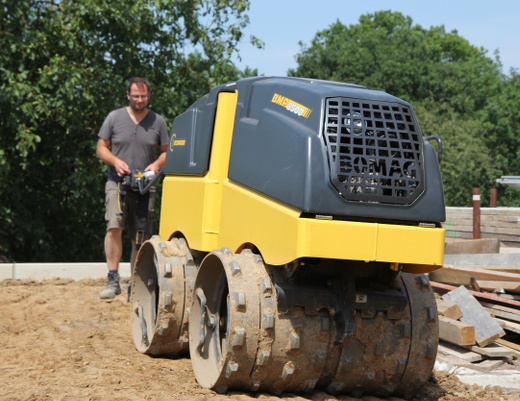

BOMAG BMP 8500 Walk Behind Roller

BOMAG BMP 8500 Walk Behind Roller

The BOMAG BMP 8500 multi-purpose compactor achieves outstanding compaction results on soil compaction in trenches, sewers and on pipeline construction.

Reliable Engine

Both the modern Kubota engine and BOMAG ECOMODE provide the lowest operating costs.

Quickly Extended

the original BOMAG drum extender allows you to adapt the working width from 24in to 33.4in in just minutes.

Dependable Control

With radio/cable remote control, problems caused by intense sunlight, shoring work, or the simultaneous use of other machines are eliminated.

Safe Respone

If the operator enters into the close vicinity of the machine, the travel system is automatically stopped by BOSS (BOMAG Operator Safety System) to prevent accidents.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

Main Specs

  • Operating Weight 3517LBS
  • Horsepower 19.4HP
  • Emission Rating Tier 4 Final
  • Roller Width 24 in

Engine

  • Engine Make/Model Kubota / D1005
  • Net Torque 46LBF/FT
  • Rated Speed 2600rpm
  • Displacement 61in3

Drivetrain

  • Max Forward Speed 1.6mph
  • Drive System Hydrostatic
  • Cooling Method Water
  • Starting Device Electric
  • Fuel Tank Capacity 6.3 gal

Performance

Dimensions

  • Length 6ft 2in
  • Width 2ft 9in
  • Height 4ft 2in
  • Ground Clearance 8.7in

Drum Dimensions

  • Width 25.6in
  • Diameter 20.5in
  • Drum Shell Thickness 1in
  • Linear Drum Load 75.4 lbs/in

Vibratory System

  • Vibratory Frequency 2,520 vpm
  • Amplitude (front/rear) 0.022in / 0.044
  • Centrifugal Force (front/rear) 8,000 lbf / 16,000 lbf
  • Gradeability 45% (w/ vibration) / 55% (w/o vibration)
