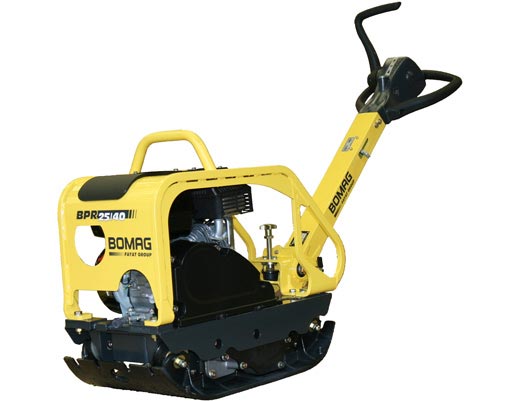

BOMAG BPR 25/40 Reversible Vibratory Plates

BOMAG BPR 25/40 Reversible Vibratory Plates

BOMAG offers a range of reversible vibratory plates that are popular choices on many small and medium-sized construction sites. These are uncompromising compaction units for earthworks, asphalt and block paving.


The BOMAG ECONOMIZER shows the operator realtime compaction progress on a continuous easy-read display. This support system prevents unnecessary passes and immediately identifies weak spots.

Highly Mobile

Robust, solid rubber transport wheels are quick-mounting, allowing easy movement to the next site.

Fully Protected

The hinged, all-round protection hood provides maximum protection and optimum access to the engine and other components, saving time and money.

Individually Adapted

Every operator can select the ideal working position with the height adjustable, low-vibration steering rod.


Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

Main Specs

  • Operating Weight 269LBS
  • Horsepower 4.8HP
  • Working Speed 82 ft/min
  • Compaction Width 15.7 in


  • Engine Make/Model Honda / GX160
  • Net Torque 7.6LBF/FT
  • Rated Speed 3600rpm
  • Displacement 10in3


  • Cooling Method Air
  • Number of Cylinders 1
  • Fuel Type Standard Gasoline
  • Fuel Tank Capacity 1 gal



  • Machine Length 2ft 1in
  • Length w/ Steering Rod 4ft 9in
  • Width 15.7in
  • Height 2ft 10in

Vibratory System

  • Frequency 5,100 vpm
  • Centrifugal Force 5,620 lbf
  • Max Gradeability 30%

Optional Equipment

  • Vulcolan Mat
  • Transport Wheels
  • Service Kit
  • Water Kit
