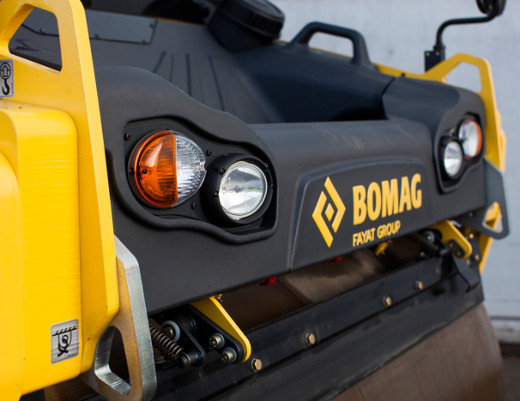

BOMAG BW 151 AD-5 Tandem Vibratory Roller

BOMAG BW 151 AD-5 Tandem Vibratory Roller

With an operating weight of 5T and above, BOMAG tandem rollers are the first choice for many applications. With cab or ROPS, productivity and operating comfort is always there.

Outstanding Fuel Economy

ECOMODE provides load-dependent and economical working without high engine speeds. Giving excellent fuel economy and maximum efficiency on every type of road construction project.

Easy Maintenance

Daily maintenance is essential and with EasyService all maintenance points can be readily reached from the ground. And without any grease nipples.

BOMAG ECONOMIZER

Simple and reliable compaction thanks to ECONOMIZER and BCM. Unnecessary passes are avoided, compaction is accurately documented. Optimized compaction is so easy.

Triple Vibration

Only BOMAG tandem rollers offer you three vibration systems. With double vibration, TanGO and ASPHALT MANAGER you have three technologies to choose from..

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

Main Specs

  • Operating Weight 16755LBS
  • Horsepower 74.2HP
  • Emission Rating Tier 4 Final
  • Roller Width 66.1 in

Engine

  • Engine Make/Model Kubota / V3307 CR-T
  • Net Torque 196LBF/FT
  • Rated Speed 2400rpm
  • Displacement 203in3

Drivetrain

  • Transmission Type Hydrostatic
  • Max Forward Speed 7.4mph
  • Cooling Method Water
  • Brake Type Service: Hydrostatic / Parking: Multi-disc
  • Fuel Tank Capacity 33 gal

Performance

Dimensions

  • Length 14ft 5in
  • Width 6ft
  • Height - ROPS / No ROPS 9ft 10in / 7ft 2in
  • Wheelbase 10ft 9in
  • Overhang - Left / Right 3.2in / 3.2in
  • Ground Clearance 9.8in

Drum Dimensions

  • Width 66.1in
  • Diameter 43.3in
  • Drum Shell Thickness 0.6in
  • Linear Drum Load (front/rear) 126.6 lbs/in / 120.2 lbs/in
  • Water Tank Capacity 158.5 gal

Vibratory System

  • Vibratory Frequency (stage I / stage II) 4,200 vpm / 3,000 vpm
  • Amplitude (stage I / stage II) 0.01in / 0.026in
  • Centrifugal Force (stage I / stage II) 18,900 lbf / 13,950 lbf
  • Gradeability 30% (w/ vibration) / 40% (w/o vibration)

Steering

  • Steering Axle Articulation
  • Steering Angle 32°
  • Oscillation Angle 10°
  • Turning Radius - Inside 14ft 4in
