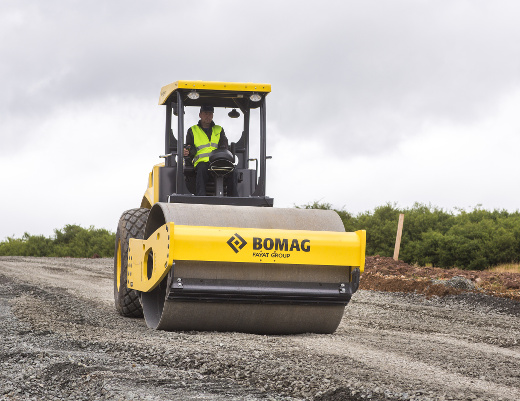

BOMAG BW 211 DH-5 Single Drum Vibratory Roller

BOMAG BW 211 DH-5 Single Drum Vibratory Roller

When BOMAG engineers were developing the workplace for the BW 211 and BW 213 series single drum rollers, it was with operators in mind. The result: optimum conditions for precise and fast work on site.

The smooth drum BW 211 D-5 and DH-5 models are designed for water bound materials, sand, gravel and sub-bases. The padfoot BW 211 PD-5 and PDH-5 models is best suited for landfill and back-filling work.

Less Noise & Fuel

The smart ECOMODE speed control not only saves up to 30 percent fuel, but also produces less noise.

BOMAG TERRAMETER

The system shows the compaction value digitally and in the form of a bar graph, which helps to avoid unnecessary passes, saves time, and boosts cost-effectiveness.

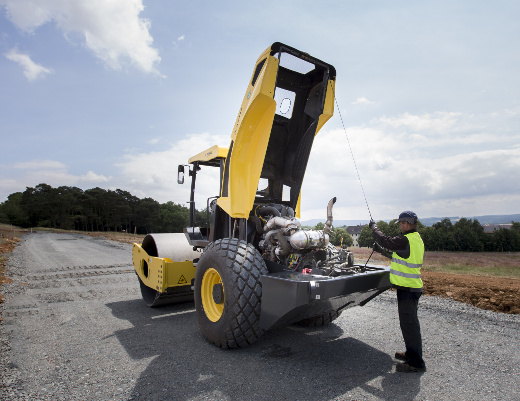

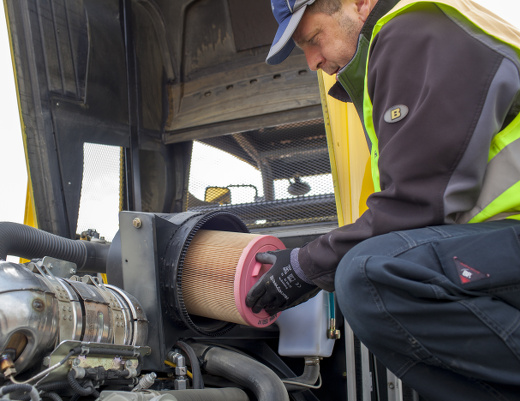

Less Service & Maintenance

Longer servicing intervals and no lubrication mean less maintenance, less downtime – after all, time is money.

Easier & Safer Operation

With the manual slip control in the D Series and dual pump in the DH Series, BOMAG has set new standards in single drum roller gradeability.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Check out our used inventory

Main Specs

  • Operating Weight 24008LBS
  • Horsepower 128HP
  • Emission Rating Tier 4 Final
  • Roller Width 83.8 in

Engine

  • Engine Make/Model Deutz / TCD 3.6 L04
  • Net Torque 369LBF/FT
  • Rated Speed 2000rpm
  • Displacement 219in3

Drivetrain

  • Transmission Type Hydrostatic
  • Max Forward Speed 6.8mph
  • Tire Size 12.5 - 20
  • Number of Tires 2
  • Tire Type 12PR
  • Fuel Tank Capacity 66 gal

Performance

Dimensions

  • Length 19ft 3in
  • Width 7ft 5in
  • Height - ROPS / No ROPS 9ft 9in / 7ft 4in
  • Wheelbase 9ft 9in
  • Overhang - Left / Right 2.7in / 2.7in
  • Ground Clearance 19.2in

Drum Dimensions

  • Width 83.8in
  • Diameter 59in
  • Drum Shell Thickness 0.9in
  • Linear Drum Load 154.5 lbs/in

Steering

  • Steering Axle Articulation
  • Steering Angle 35°
  • Oscillation Angle 12°
  • Turning Radius - Inside 12ft

Vibratory System

  • Vibratory Frequency (stage I / stage II) 1,800 vpm / 2,040 vpm
  • Amplitude (stage I / stage II) 0.071in / 0.03in
  • Centrifugal Force (stage I / stage II) 48,783 lbf / 30,124 lbf
  • Gradeability 58% (w/ vibration) / 60% (w/o vibration)
