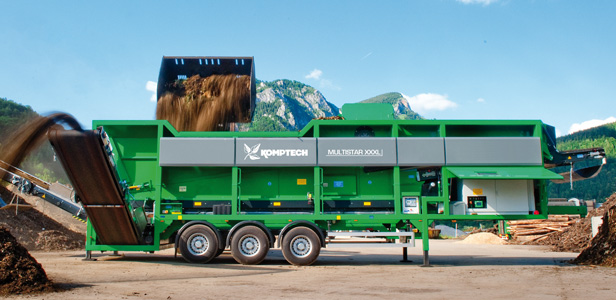

Komptech Multistar XXL2 Star Screen

Komptech Multistar XXL2 Star Screen

The XXL-2 is purpose built to keep up with the high throughput of large grinders in the mulch market. This one step process increases output and lowers production costs.

Economical Hybrid Drive

All-electric drive of all components, sources either from grid power or the on-board diesel generator.

Increased Production Capacity

Extra-large overs screen deck for increased production of finished product with tighter spacing to produce a finer mulch.

Control Costs

Reduce handling costs by powering stacking conveyors directly from the machine.

Simple Operation

Clear, easily understood control panel with programmable recipes.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Screeners.

Main Specs

  • Operating Weight 22 tons
  • Diesel Generator Output 64 kW
  • Hopper Volume 13 yd³
  • Throughput 660 yd³/hr

Engine

  • Diesel Generator Output 47.6 kW

Drivetrain

Performance

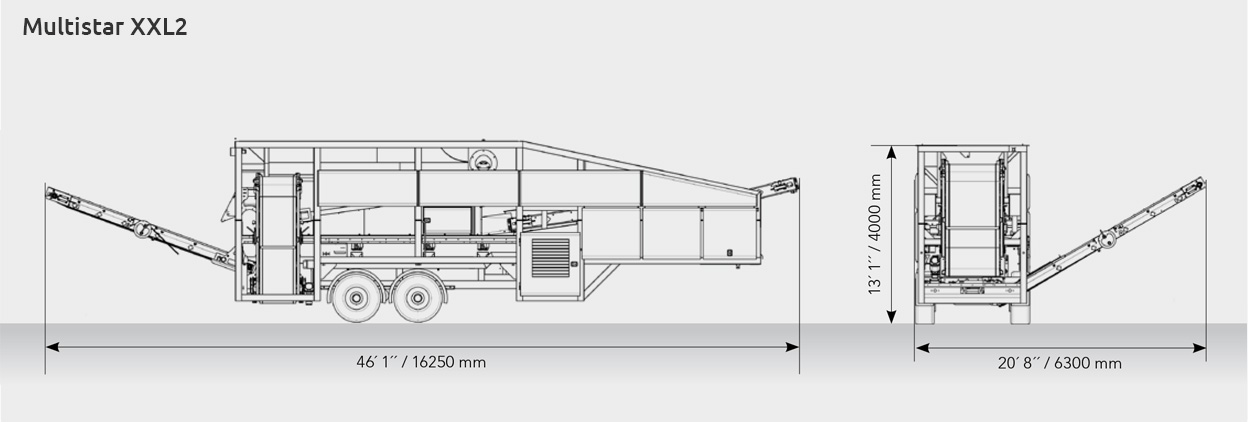

Dimensions

  • Length 44ft 11in (transport) / 50ft 10in (working)
  • Width 8ft 5in (transport) / 13ft 11in (working)
  • Height 12ft 10in (transport) / 12ft 10in (working)

Feed Hopper

  • Hopper Volume 13 yd³
  • Filling Length 13ft 1in
  • Filling Height 10ft 6in

Screening Segments

  • Fine Screen Area 23ft x 5ft 3in (120.5ft²)
  • Coarse Particle Size 1in +
  • Fine Particle Size 19/32in - 1in

Material Discharge

  • Max Height (coarse fraction) 11ft 10in (15ft 1in option)
  • Max Height (fine fraction) 8ft 10in

Optional Equipment

  • Variable screen options for coarse & fine screens
  • Magnetic drum
  • Discharge belt for rolling pieces
  • Windsifter
  • Diesel generator towing and chassis options
  • Radio remote control
  • Central lubrication
