Komptech Multistar XXL3 Star Screen

Komptech Multistar XXL3 Star Screen

The Komptech XXL3 star screen is designed for the most demanding operation with the highest throughput, while retaining the benefits of mobility.

Economical Hybrid Drive

All-electric drive of all components, sources either from grid power or the on-board diesel generator.

Control Costs

Reduce handling costs by powering stacking conveyors directly from the machine.

Increased Production Capacity

Extra-large overs screen deck for increased production of finished product with tighter spacing to produce a finer mulch.

Simple Operation

Clear, easily understood control panel with programmable recipes.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Screeners.

Main Specs

  • Operating Weight 26 tons
  • Diesel Generator Output 64-80 kW
  • Hopper Volume 15.7 yd³
  • Throughput 530 yd³/hr

Engine

  • Diesel Generator Output 47.6 kW

Drivetrain

Performance

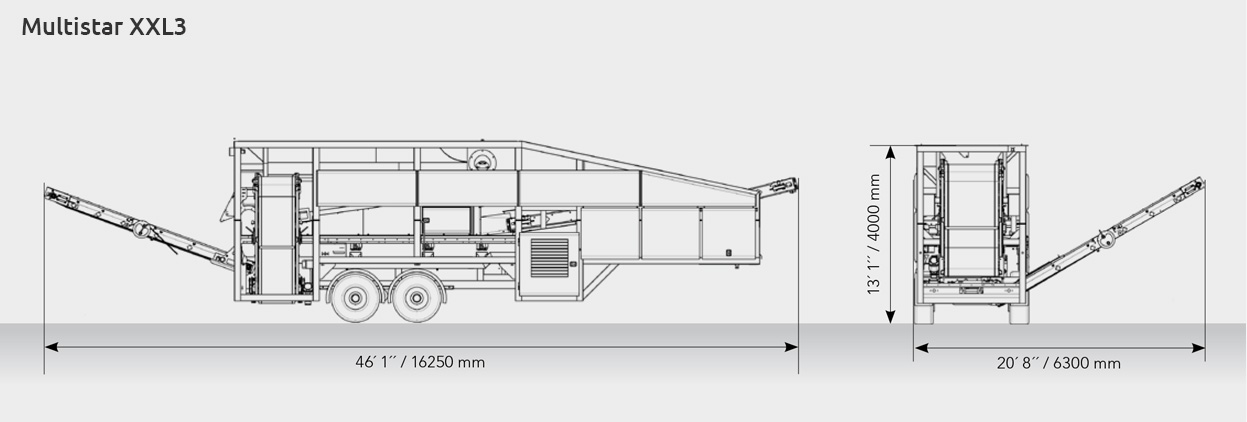

Dimensions

  • Length 44ft 11in (transport) / 55ft 9in (working)
  • Width 8ft 2in (transport) / 21ft 4in (working)
  • Height 13ft 1in (transport) / 13ft 1in (working)

Feed Hopper

  • Hopper Volume 15.7 yd³
  • Filling Length 13ft 1in and 19ft
  • Filling Height 12ft 2in

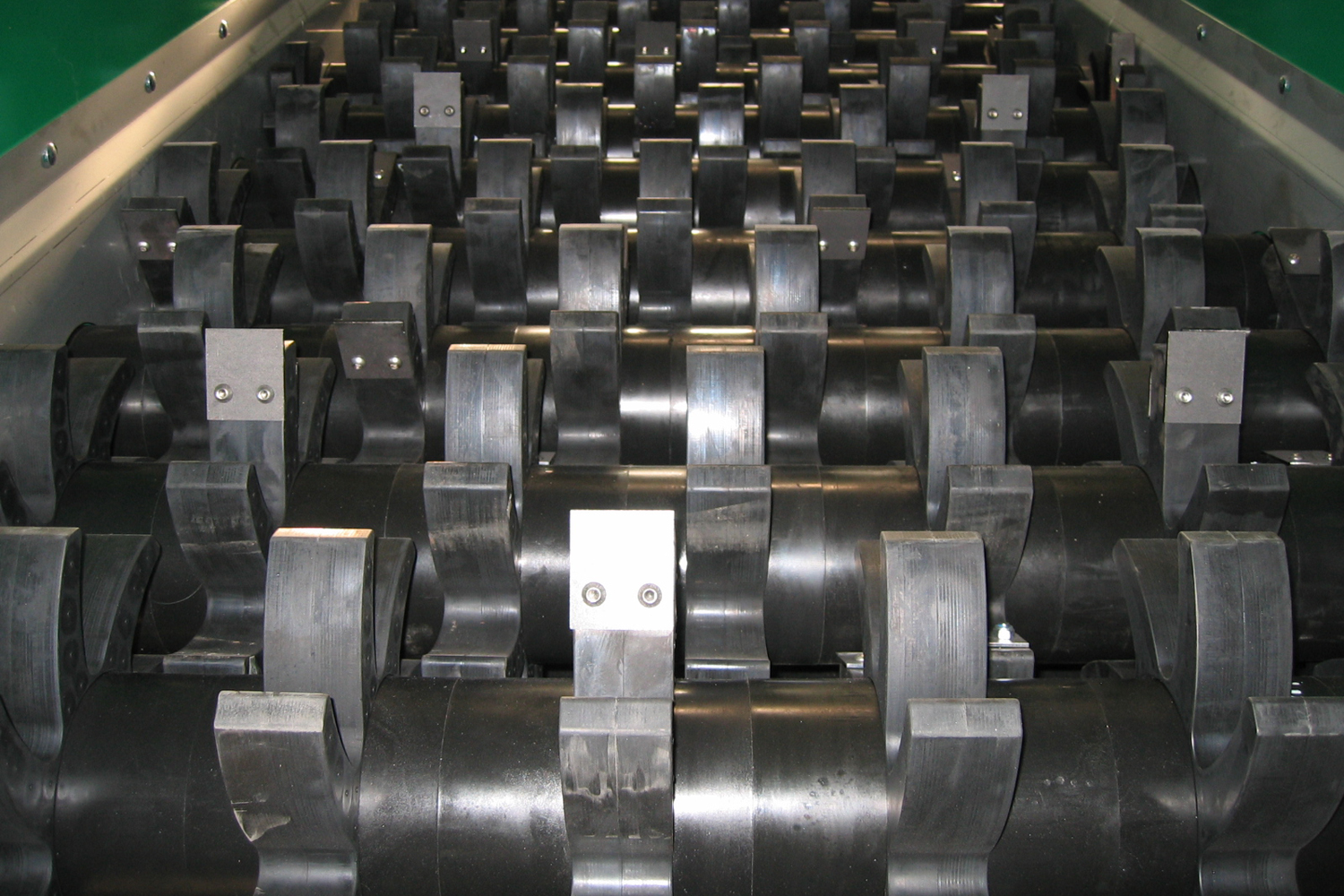

Screening Segments

  • Coarse Screen Area 16ft 7in x 3ft 11in (65.6ft²)
  • Fine Screen Area 29ft 3in x 4ft 1in (118.4ft²)
  • Coarse Particle Size 3 1/2in +
  • Medium Particle Size 1in - 3 1/2in
  • Fine Particle Size 3/8in - 1in

Material Discharge

  • Max Height (coarse fraction) 11ft 10in
  • Max Height (medium fraction) 11ft 6in
  • Max Height (fine fraction) 10ft 2in

Optional Equipment

  • Variable screen options for coarse & fine screens
  • Magnetic drum
  • Discharge belt for rolling pieces
  • Windsifter
  • Diesel generator towing and chassis options
  • Radio remote control
  • Central lubrication
