Komptech Terminator 3400 S Shredder

Komptech Terminator 3400 S Shredder

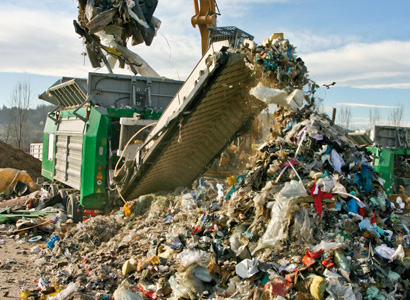

Waste treatment for material recycling or energy recovery generally begins with a shredding process, in which the entire input material is prepared for subsequent process stages. The Terminator was built specifically for this purpose.

Available in Track, Trailer, or Hook versions. Dimensions below are for the Track version.

Metal Removal

The over-belt magnet is now mounted in a specially designed, infinitely adjustable holder that gives parallel positioning of the magnet over the discharge conveyor regardless of the conveyor angle.

Loading Made Easy

Hydraulic folding hopper sidewalls make the already generous shredding chamber even bigger, for a loading volume of up to 9 yds³.

High Clearance Chassis

The 16in extension added to the discharge channel allows coarsely broken and bulky items to easily clear the machine.

Safety & Accessibility

Easy access doors and fold-out platforms provide a safe and comfortable working environment.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Shredders.

Main Specs

  • Operating Weight 29.6 tons
  • Horsepower 330HP
  • Emission Rating Tier 4 Final
  • Throughput 45 t/h

Engine

  • Engine Make/Model CAT / C9 ACERT
  • Net Torque 1150LBF/FT
  • Rated Speed 2200rpm
  • Displacement 537in3

Drivetrain

Performance

Dimensions

  • Length 25ft 8in (transport) / 38ft 5in (working)
  • Width 8ft 2in (transport) / 11ft (working)
  • Height 11ft 10in (transport) / 12ft 8in (working)
  • Loading Height 9ft 6in
  • Discharge Height (10°-35°) 5ft 8in - 13ft 9in

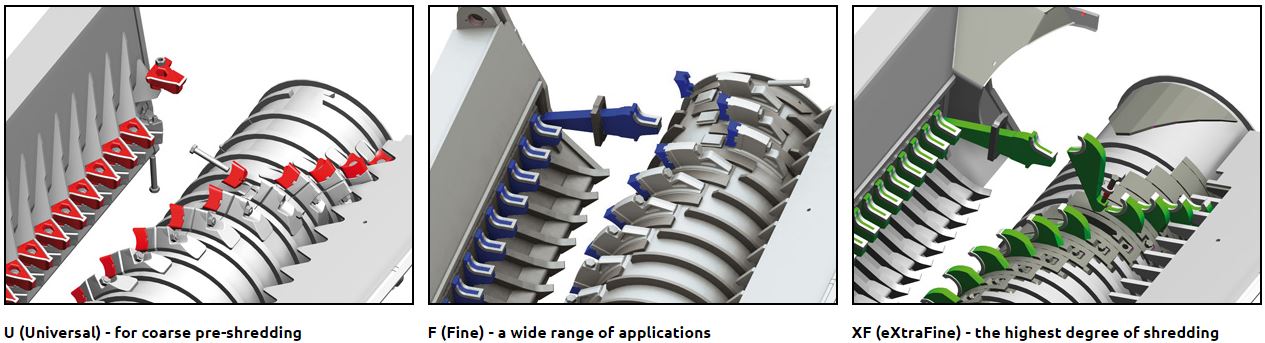

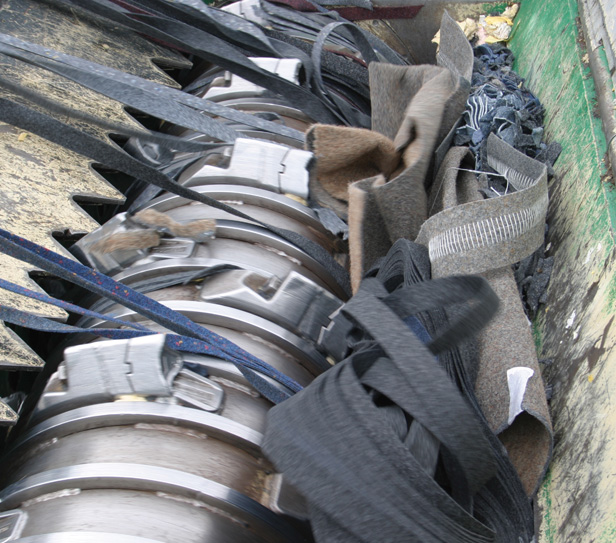

Shredding Unit

  • Max RPM 29
  • Drum Length 9ft 10in
  • Drum Diameter 3ft 5in

Optional Equipment

  • Armored drum teeth
  • Forward movement device (Hook, Trailer)
  • Towing unit (Hook)
  • Remote control
  • Central lubrication
  • Over-belt magnet with swinging arm
  • Magnetic pulley
