Liebherr A 924 Litronic Wheeled Excavator

Liebherr A 924 Litronic Wheeled Excavator

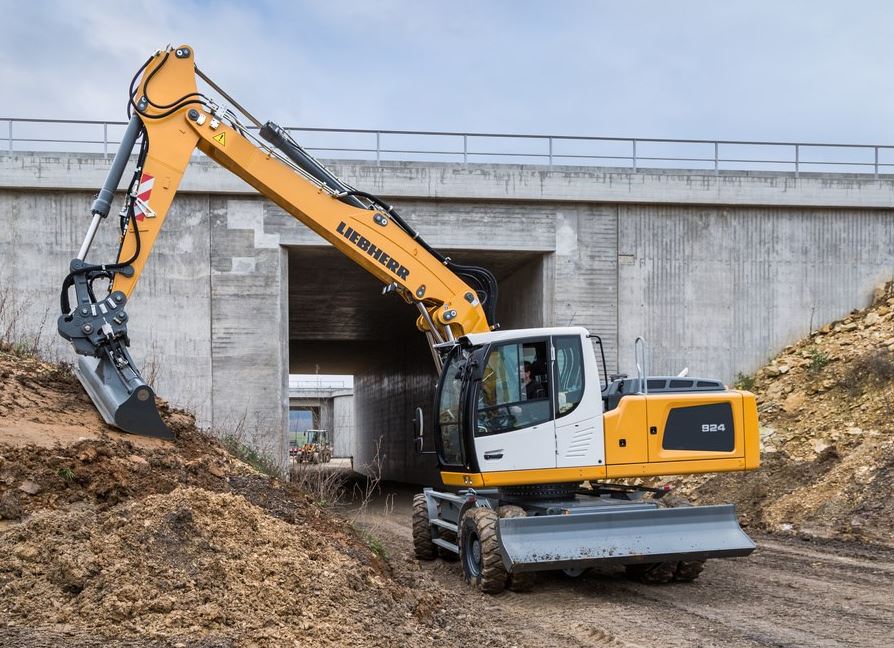

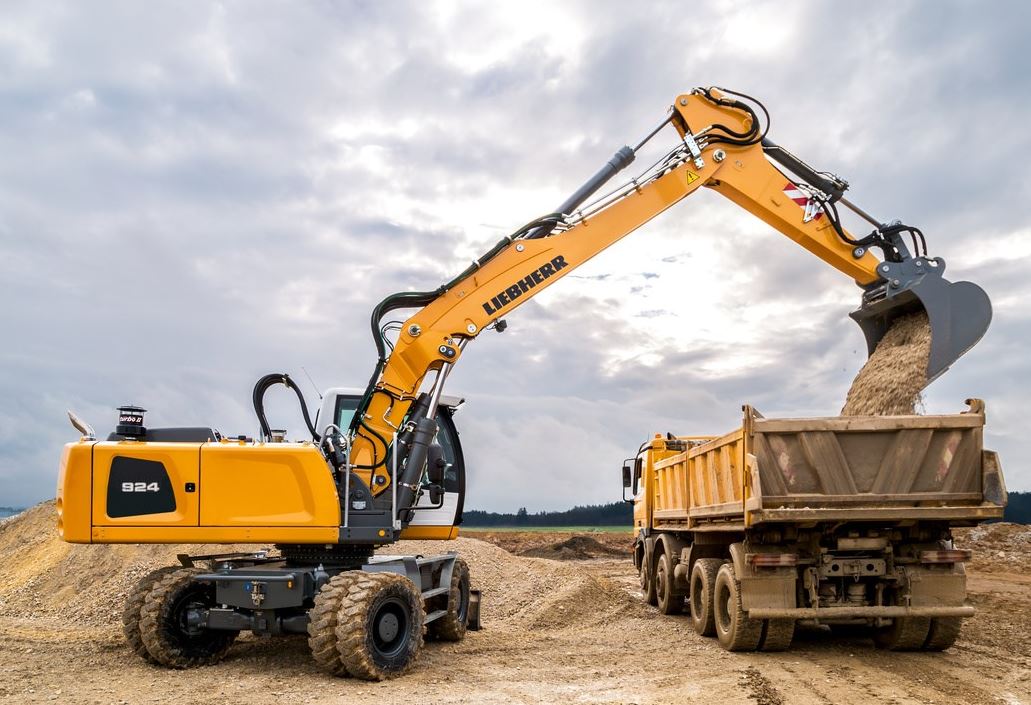

Liebherr A 924 Litronic Wheeled Excavator combines above-average performance with a high level of economy. The high degree of vertical integration ensures maximum quality and allows optimum coordination of components for maximum efficiency.

More Production

The intelligent structure of the uppercarriage and separate mounting of the hoist cylinders permits a significant lift capacity. That makes the A 924 Litronic the ideal machine for pipeline and trenching applications.

Liebherr Tier 4 Engine

The Liebherr D934 diesel engine minimizes environmental impact with low fuel consumption and reduced emissions. To achieve emissions standard Tier 4f, Liebherr employs an innovative SCR system (selective catalytic reduction).

Operating Safely

The standard pipe fracture safety valves on the stick and hoist cylinders prevents the attachments from dropping in an uncontrolled way and ensure maximum safety during every operation.

Quiet Cabs

The use of viscous mounts, good insulation and low-noise diesel engines from Liebherr minimizes noise emissions and vibrations. The noise levels are just 72 dB(A) in the operator’s cab and 103 dB(A) outside.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Wheeled Excavators.

Main Specs

  • Bucket Capacity 1.3YD3
    Compatible Range
  • Operating Weight 49824LBS
  • Horsepower 181HP
  • Emission Rating Tier 4 Final

Engine

  • Engine Make/Model Liebherr / D934
  • Rated Speed 1700rpm
  • Displacement 427in3
  • Engine Design 4 cylinder in-line, turbo aftercooled

Drivetrain

  • Transmission Type Hydrostatic 4WD
  • Max Forward Speed 15.5mph
  • Tire Size 10.00-20
  • Number of Tires 8
  • Travel Speed - Low Range (min/max) 1.5 mph / 3.1 mph
  • Travel Speed - High Range (min/max) 5.5mph / 12.4 mph

Performance

Dimensions

  • Transport Height Over Boom 10ft 8in
  • Transport Length - Mono Boom 31ft 4in
  • Overall Width 9ft
  • Overall Width - Stabilizers Down 14ft
  • Tailswing Radius 9ft 3in
  • Ground Clearance 14.1in

Hydraulics

  • Hydraulic Tank Capacity 66 gal
  • Hydraulic System Capacity 113.5 gal
  • Pump Type Variable axial piston
  • Max Pump Flow 2 x 56.7 gal/min
  • Max Operating Pressure 5,076 PSI
  • Swing Speed 8 rpm
  • Swing Torque 54,579 lbf

Ground Engaging Tools

  • Heaped Bucket Capacity 1.3 yd³
  • Bucket Cutting Width 49.2in
  • Bucket Weight 1,764 lbs
  • Bucket Breakout Force 35,542 lbf
  • Clamshell Bucket Capacity Range 0.22 - 2.35 yd³
  • Clamshell Bucket Width Range 12.6in - 70.9in
  • Clamshell Bucket Weight Range 1,698 - 2,822 lbs
  • Dozer Blade Width 9ft
  • Dozer Blade Height Above Ground 18.3in
  • Dozer Blade Dig Depth 4.9in

Performance Dimensions

  • End Lift - Reach @ 6m 19,885 lbs
  • Side Lift - Reach @ 6m 7,319 lbs
  • Ground Level Reach - Mono Boom 31ft 4in
  • Dig Height - Mono Boom 31ft 6in
  • Dump Clearance Height - Mono Boom 21ft
  • Dig Depth - Mono Boom 19ft 2in
  • Mono Boom Size 18ft 6in
  • Standard Dipper Length 7ft 5in
  • Dipper Tearout Force 27,606 lbf
