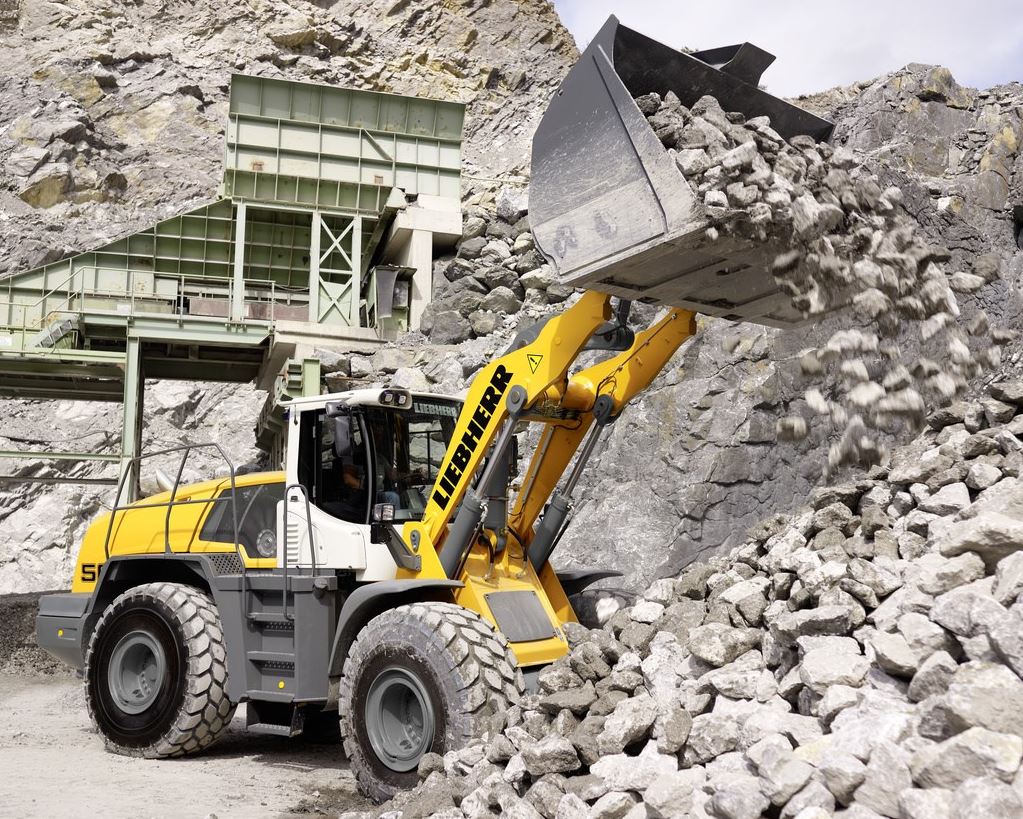

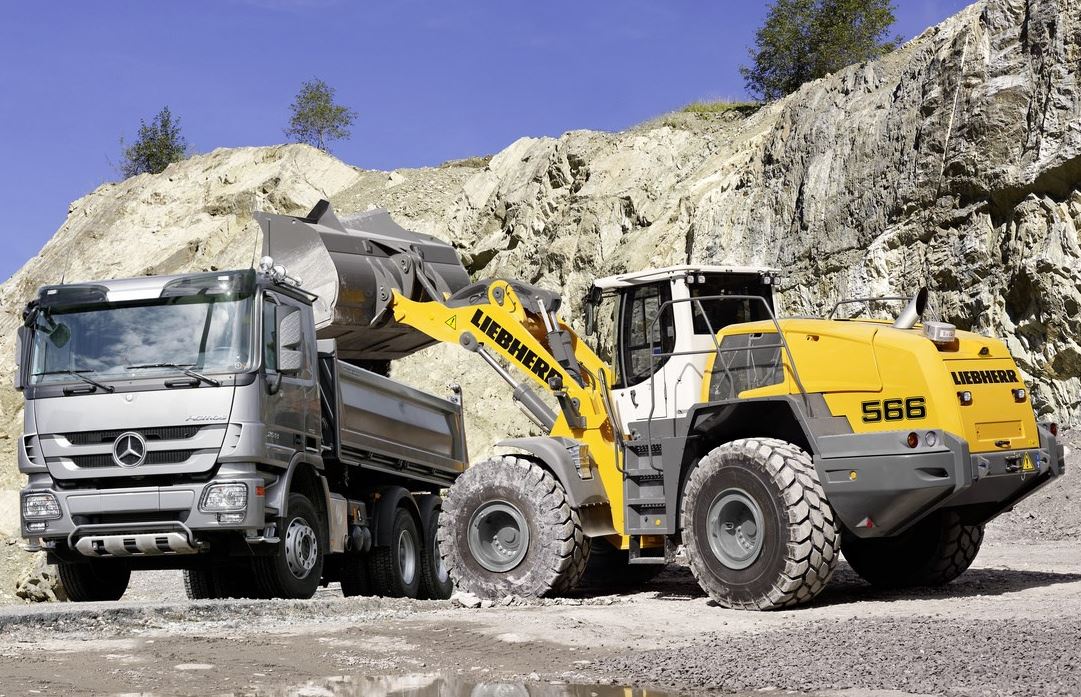

Liebherr L 566 Wheel Loader

Liebherr L 566 Wheel Loader

The Liebherr L 566 Wheel Loader makes a reliable contribution to commercial success. The low fuel consumption reduces operating costs and increases productivity with high handling capacity.

Liebherr Power Efficiency (LPE)

The Liebherr driveline with Liebherr Power Efficiency (LPE) reduces wheel loader fuel consumption by 25% or more when compared to conventional travel gears.

Optimal Performance

The Liebherr L 566 Wheel Loader driveline allows for optimal positioning of the diesel engine. In this wheel loader class the diesel engine is rotated 90° and mounted transverse to the direction of travel.

Reliability

All the materials used in the Liebherr wheel loaders have passed extensive tests to ensure that they meet Liebherr’s exacting standards even in the toughest conditions. The advanced concept and proven quality make Liebherr wheel loaders the benchmark of reliability.

Extraordinary Comfort

The operator’s cab has been designed to ensure maximum comfort, enhance productivity, and ergonomics. Tool controls and displays are strategically arranged for ease of operation. The newly developed mounting system substantially reduces noise and vibration in the cab‘s interior.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Wheel Loaders.

Main Specs

  • Bucket Capacity 5.2YD3
    Compatible Range
  • Operating Weight 51035LBS
  • Horsepower 255HP
  • Emission Rating Interim T4

Engine

  • Engine Make/Model Liebherr / D936 A7
  • Net Torque 1033LBF/FT
  • Displacement 642in3
  • Rated Speed 1,300 rpm

Drivetrain

  • Transmission Type Hydrostatic
  • Controls Actuation Electronic
  • Differential Lock-Front/Rear Front: LSD / Rear: LSD
  • Tire Size 26.5 R25
  • Max Forward Speed 24.9 mph
  • Max Reverse Speed 24.9 mph

Performance

  • Linkage Geometry Z-bar (industrial lift arm available)
  • Straight Tipping Load 40,115 lbs
  • Full Turn Tipping Load 26,785 lbs
  • Shovel Breakout Force 34,725 lbf
  • Max Hinge Pin Height 14ft 4in
  • Steering Articulation Angle 40°

Dimensions

  • Width Over Tires 9ft 9in
  • Height To Top Of Cab 11ft 9in
  • Ground Clearance 21in
  • Chassis Type Articulated
  • Full Lift Dump Height 10ft 8in
  • Full Lift Reach Height (STD bucket) 4ft 1in
  • Length (including STD shovel) 30ft 5in
  • Wheelbase 12ft 5in
  • ROPS / FOPS Yes / Yes
  • ROPS / FOPS Ratings ISO 3471 / ISO 3449

Hydraulics

  • Hydraulic Pump Type Variable Flow Swash Plate
  • Hydraulic Fluid (tank/system) 35.7 gal / 70 gal
  • Pump Flow 77 gal/min
  • Pump Flow - Steering 77 gal/min
  • Loader Control Servo Joystick
  • Relief Pressure 5,076 PSI
  • Cycle Time - Raise 5.5 sec
  • Cycle Time - Lower 3.5 sec
  • Cycle Time - Dump 2 sec
  • Cycle Time - Total 11 sec
