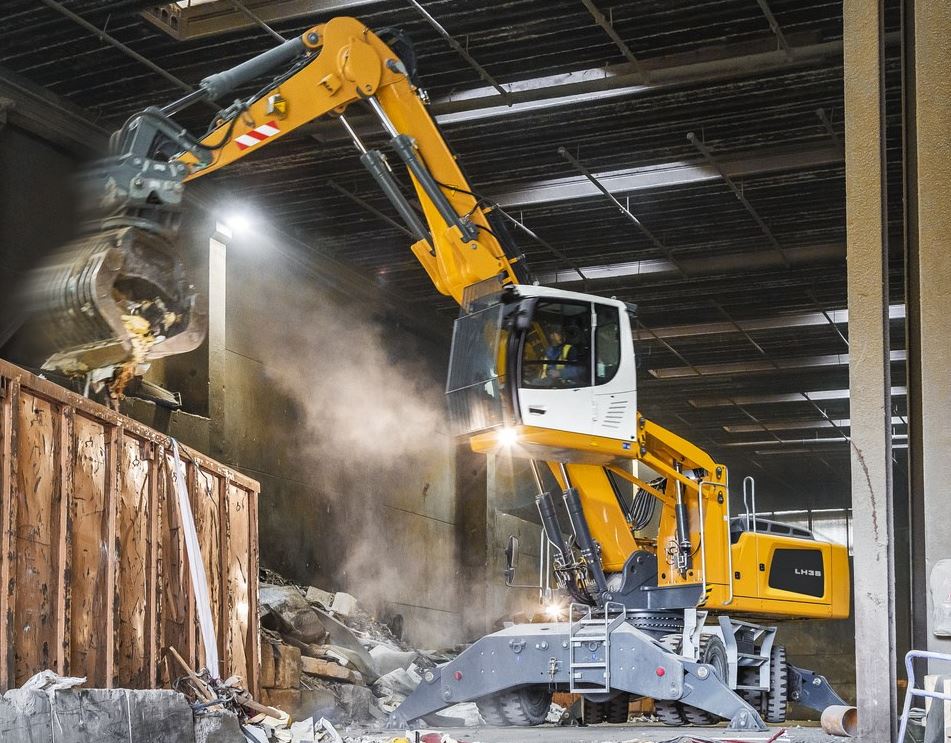

Liebherr LH 35 M Material Handler

Liebherr LH 35 M Material Handler

The high-performance of the LH 35 M Industry is demonstrated through its handling capabilities in every kind of application. The strong axles, which are very well suited for pulling logging trailers, enhance the working spectrum of this machine.

Increased Engine Output

Engine output has been increased from 173 HP to 190 kW compared to the predecessor models, giving the system more torque for more powerful and faster movement.

Maximum Efficiency

The engine speed has been reduced from 1,800 rpm to 1,700 rpm. The machine’s operating point has thus been optimized for outstanding fuel efficiency at maximum handling capacity.

Working Range Limiters

Working range limitations of all dimension types can be set: height, depth, width and proximity. Collisions and resulting component damage can thus be avoided.

Excellent Visability

The noise levels are just 71 dB(A) in the operator’s cab and 103 dB(A) outside. This means that the LH 35 M creates low noise volumes to reduce environmental disturbances.


Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Material Handlers.

Main Specs

  • Bucket Capacity 0.78YD3
    Compatible Range
  • Operating Weight 73000LBS
  • Horsepower 190HP
  • Emission Rating Tier 4 Final


  • Engine Make/Model Liebherr / D934
  • Rated Speed 1700rpm
  • Displacement 427in3
  • Engine Design 4 cylinder in-line, turbo aftercooled


  • Transmission Type 2-Speed Powershift
  • Max Forward Speed 12.4mph
  • Tire Size 10.00-20
  • Number of Tires 8
  • Travel Speed - Low Range (min/max) 2.2 mph / 4.3 mph
  • Travel Speed - High Range (min/max) 8.1 mph / 12.4 mph



  • Height Over Cab (Hydraulic Elevation) 10ft 11in
  • Height Over Raised Cab 19ft 4in
  • Transport Length - Mono Boom 37ft 3in
  • Overall Width 9ft 10in
  • Overall Width - Stabilizers Down 15ft 5in
  • Ground Clearance 10in


  • Hydraulic Tank Capacity 46 gal
  • Hydraulic System Capacity 114 gal
  • Pump Type Variable axial piston
  • Max Pump Flow 2 x 61 gal/min
  • Max Operating Pressure 5,076 PSI
  • Swing Speed 9.5 rpm
  • Swing Torque 56,055 lbf

Performance Dimensions

  • Mono Boom Size 25ft 7in
  • Angled Stick Size 19ft 8in
  • Max Reach - Straight Mono Boom 49ft 3in
  • Max Height - Straight Mono Boom 50ft
  • Max Depth - Straight Mono Boom 14ft 6in
  • Ground Level Reach - Straight Mono Boom 44ft 4in
  • Grapple Capacity - Multiple Tines 0.78 yd³
  • Grapple Weight - Multiple Tines 3,285 lbs
