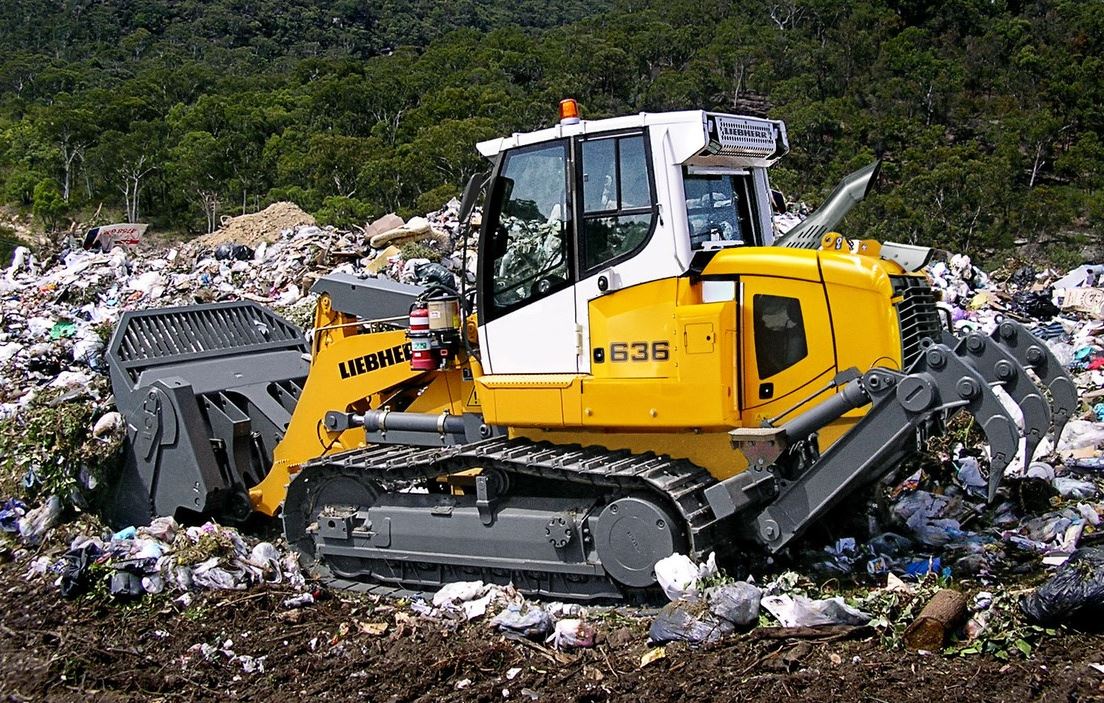

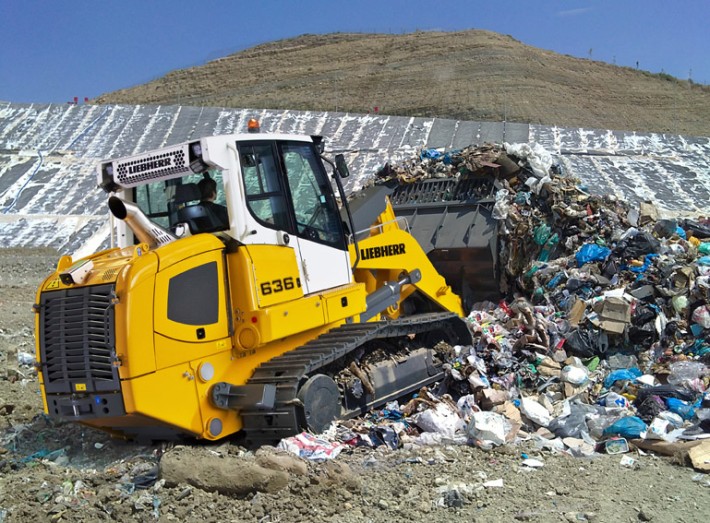

Liebherr LR 636 Litronic Crawler Loader

Liebherr LR 636 Litronic Crawler Loader

Power, agility and economy are the trademarks of crawler loaders from Liebherr. Be it material handling, dozing or leveling – high power and highly efficient machines are available for any area of deployment.

High Tipping Load

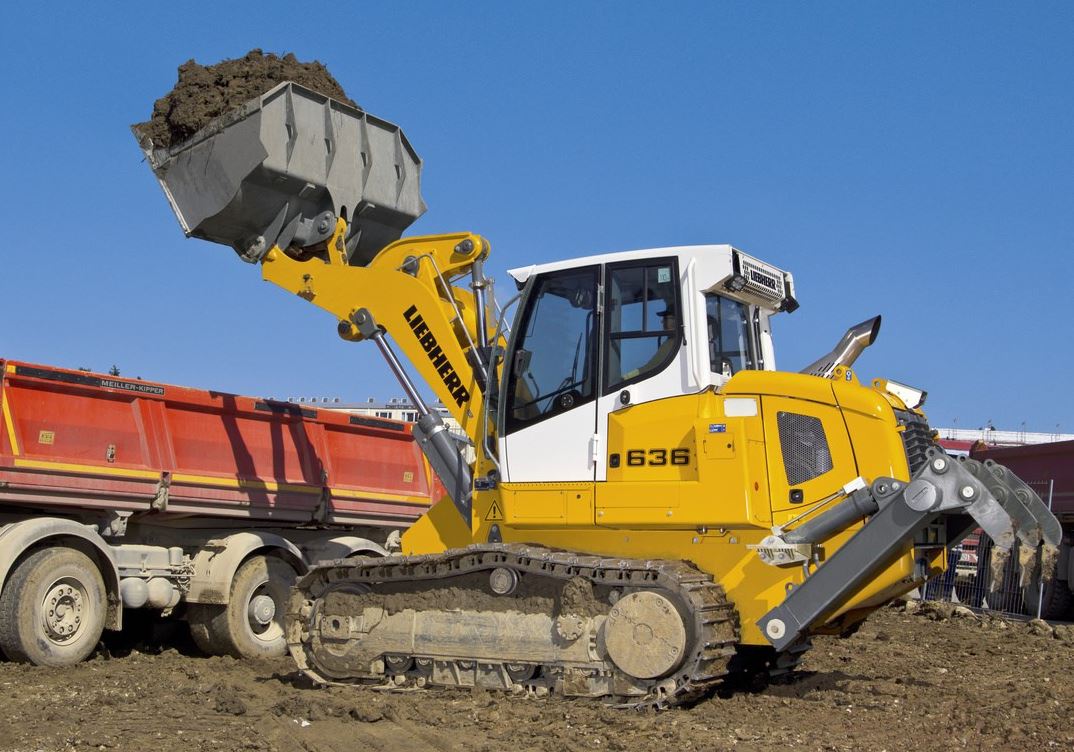

The large tipping angle of the bucket and high stability ensure optimum filling capacity in every work cycle, especially when loading trucks.

Low Fuel Consumption

The load sensing working hydraulics, the highly efficient hydrostatic drive unit, and the constantly low nominal speed of the Liebherr diesel engine combine to guarantee low fuel consumption.

Maximum Uptime

The LR 636 crawler loaders are developed, tested and built at the Liebherr production plant in Telfs (Austria). This ensures the highest quality of the entire process and of all components from the manufacturer.

Simple Control

All travel movements, including “counter rotation”, can be easily controlled with just one joystick. The machine can be fitted with “reverse-V”-pattern control and pedal steering on request.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Crawler Loaders.

Main Specs

  • Bucket Capacity 3.27YD3
    Compatible Range
  • Operating Weight 47591LBS
  • Horsepower 181HP
  • Emission Rating Tier 4 Final

Engine

  • Engine Make/Model Liebherr / D934 A7
  • Rated Speed 1800rpm
  • Displacement 427in3
  • Engine Design 4 cylinder in-line, turbocharged

Drivetrain

  • Transmission Type Hydrostatic
  • Controls Actuation Electronic
  • Control Single Joystick
  • Speed Range 1 (reverse) 2.5 mph (2.8 mph)
  • Speed Range 2 (reverse) 4 mph (4.9 mph)
  • Speed Range 3 (reverse) 6.8 mph (6.8 mph)
  • Steering System Type Hydrostatic w/counter rotation

Performance

Dimensions

  • Height Over Cab 10ft 11in
  • Height Over Exhaust Pipe 9ft 5in
  • Length to Front of Track 16ft 2in
  • Machine Width (standard track) 7ft 7in
  • Distance Between Idler/Sprocket Center 8ft 6in
  • Ground Clearance 19in

Hydraulics

  • Hydraulic Tank Capacity 22.7 gal
  • System Type LUDV (Load-Independent Flow Distribution)
  • Pump Type Swash Plate Piston Pump
  • Max Pump Flow 55.2 gal/min
  • Max Operating Pressure 3,770 PSI
  • Cycle Times (Lift/Dump/Lower/Total) 6.4s / 2.2s / 2.6s / 11.2s

Undercarriage

  • Track Shoe Width (standard track) 20in
  • Rollers Per Side 6
  • Chain Links Per Side 38
  • Track Gauge 5ft 11in
  • Grouser Height 1.67in
  • Track Length On Ground 8ft 5in
  • Ground Pressure (standard track) 10.67 PSI

Standard Bucket

  • Weight 3,759 lbs
  • Overall Height at Full Lift 18ft
  • Max Height of Hinge Pin 13ft 4in
  • Width 8ft 4in
  • Breakout Force 36,856 lbf
  • Static Tipping Load 32,124 lbs
  • Digging Depth 5.94in
  • Dump Clearance @ Full Height 10ft
  • Dump Reach @ Full Height 4ft 1in

Ripper (3 Shank)

  • Ripper Weight 2,438 lbs
  • Beam Width 6ft 11in
  • Ripping Width 6ft 1in
  • Distance Between Shanks 2ft 11in
  • Ripping Depth 13in
  • Ground Clearance Below Shanks 2ft 11in
  • Additional Length (Raised / Lowered) 2ft / 2ft 4in
  • Approach Angle (Ripper Raised) 21°
