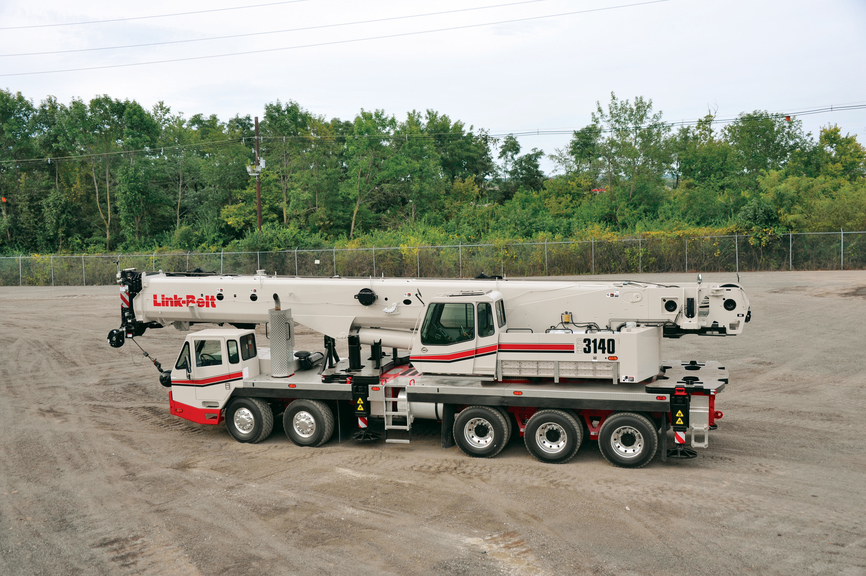

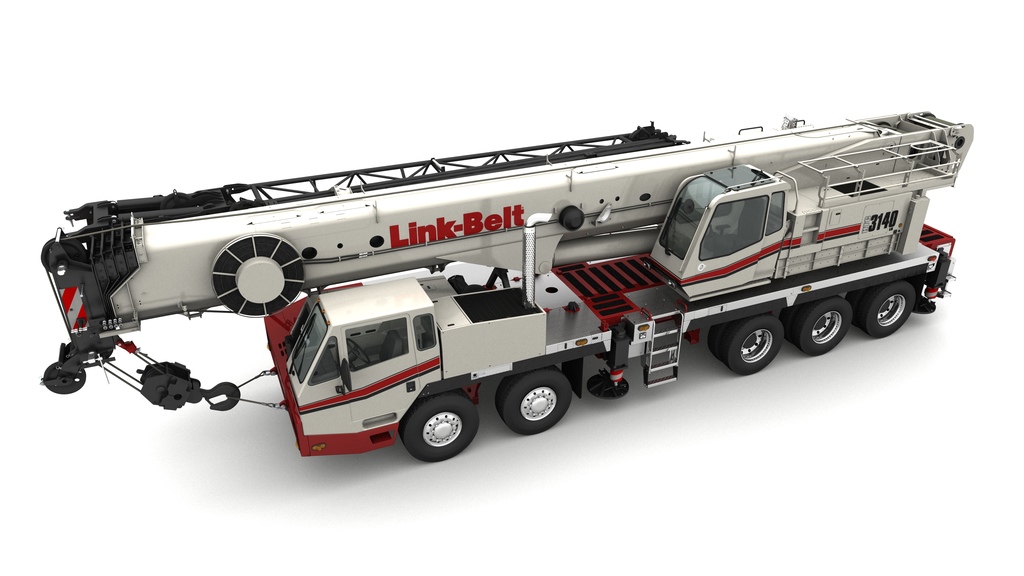

Link-Belt HTC-3140 Hydraulic Truck Crane

Link-Belt HTC-3140 Hydraulic Truck Crane

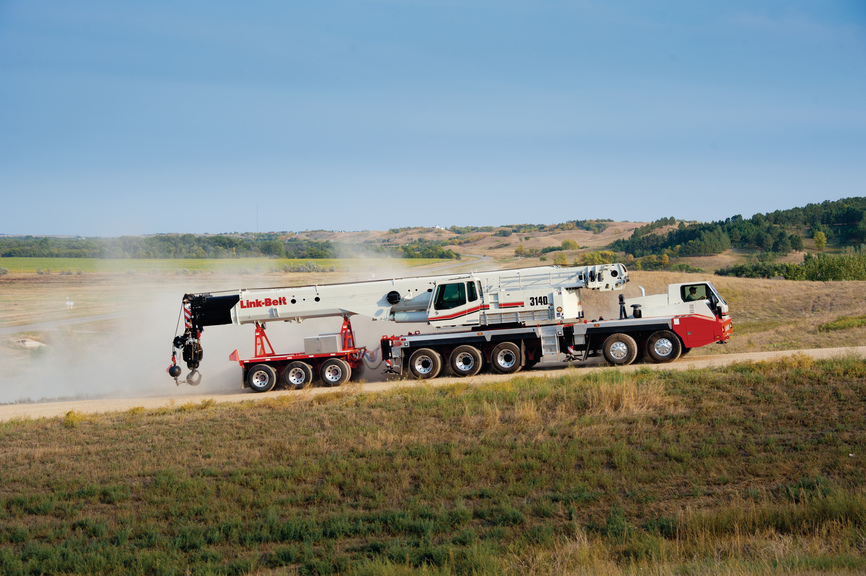

The HTC-3140 touts counterweight flexibility, big engine and transmission power, along with hydro-gas suspension promising incredible mobility on the road or on the job.

Powerful & Responsive Hydraulics

Six pump, pressure compensated hydraulic system allows simultaneous and precise function of boom hoist, winch and swing.

Lift More With Confidence

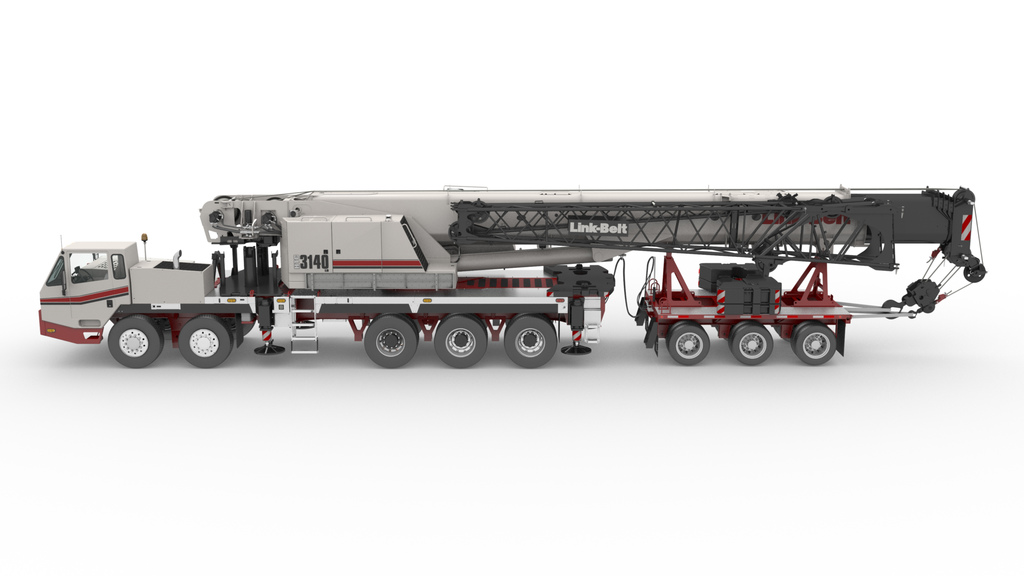

Available two or three-piece bi-fold lattice fly which allow the tip section to be stored, thus enhancing the lifting performance when using the base section.

The Confined Area Lifting Capacities (CALC)

The CALC system provides 3 outrigger positions and eliminates guesswork by automatically positioning outriggers at midpoint position.

Easy Access & Service

The pull-out CabWalk™ slides out from its secured travel position underneath the operator’s cab to give the operator a platform to stand on for easy entry and exit from the cab.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Hydraulic Truck Cranes.

Main Specs

  • Operating Weight 103414LBS
  • Horsepower 250HP
  • Emission Rating Tier 4 Final
  • Capacity Class 140 US Ton

Engine

  • Engine Make/Model Cummins / QSB6.7
  • Net Torque 730LBF/FT
  • Rated Speed 2000rpm
  • Displacement 409in3

Drivetrain

  • Transmission Type Eaton Ultra Shift Plus (clutch-less)
  • Max Forward Speed 65mph
  • Tire Size Front: (4) 445/65R22.5 / Rear: (12) 12R24.5
  • Steering Modes 10x6 drive/steer for on/off highway travel
  • Fuel Tank Capacity 60 gal

Performance

Dimensions

  • Height Over Cab 11ft 11in
  • Width 9ft 10in
  • Width w/ Outriggers 27ft
  • Overall Length w/ Boom 49ft 5in
  • Wheelbase 28ft 1in

Boom

  • Boom Extension Modes (max tip height) EM1 (171ft) / EM2 (159ft) / EM3 (134ft) / EM4 (122ft) / EM5 (96ft)
  • Boom Lengths 41ft - 162ft (5 sections)
  • Boom Head Six 16.38in nylon sheaves
  • Boom Elevation -2.5° to 80°

Load Hoist System

  • Max Winch Line Pull 25,955 lbs
  • Max Winch Line Speed 405 ft/min (@ 16,835 lbs)
  • Rope Length Main Wench: 850ft / Aux Winch: 600ft
  • Max Rope Storage 951ft
  • Drum Diameter 15in

Attachments

  • Max Tip Height (with optional lattice fly extension) 278 ft
  • Fly Attachment - 2 piece bi-fold (Optional) 31ft - 55ft, offsettable to 2°, 15°, 30°, and 45° (225ft max height)
  • Fly Attachment - 3 piece bi-fold (Optional) 10ft - 31ft - 55ft, offsettable to 2°, 15°, 30°, and 45° (225ft max height)
  • Fly Attachment - 3 piece (Optional) 10ft - 31ft - 55ft, offsettable to 2° thru 45° (225ft max height)
  • Fly Lattice Extension - 1 piece (Optional) 18ft (243ft max height)
  • Fly Lattice Extension - 2 piece (Optional) 18ft (260ft max height)
  • Fly Lattice Extension - 3 piece (Optional) 18ft (278ft max height)
  • Hook Blocks (Optional) 35T, 1 sheave / 50T, 4 sheave / 80T, 5 sheave / 100T, 6 sheave / 140T, 7 sheave
  • Hook Balls (Optional) 12T, swivel

Carrier

  • Main Jack Breakout Force 160,000 lbf
  • Ground Bearing Pressure 303 PSI
  • Outrigger Pontoon Contact Area 531 in²
  • Suspension Type Hydro-pneumatic with automatic ride height leveling
  • Brakes Full Air ABS
  • Max Gradeability @ Peak Torque 1st Gear: 78.2% / 11th Gear: 3.45%
  • Counterweight Range 20,000 lbs - 60,000 lbs

Hydraulics

  • Hydraulic Tank Capacity 155 gal
  • Max Pump Flow 195 gal/min
  • Swing Speed 1.5 rpm
  • Filtration Two 6-micron
