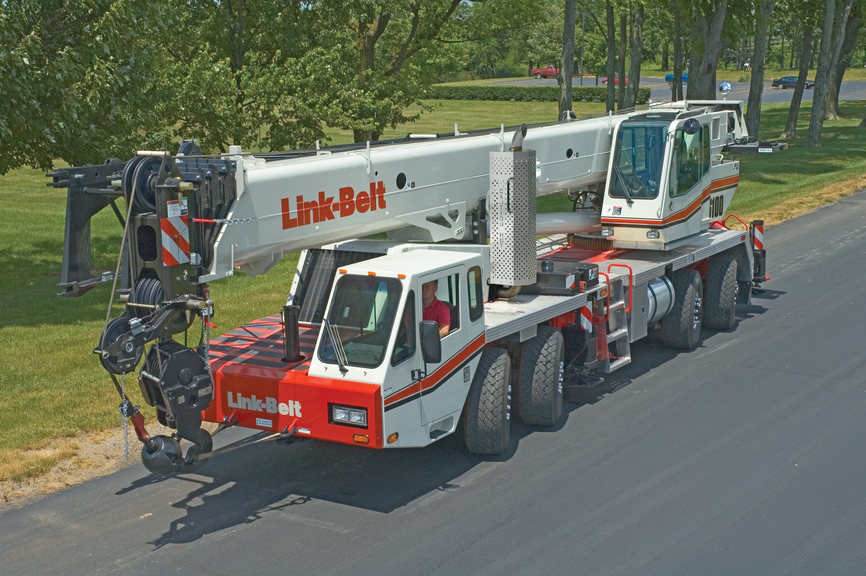

Link-Belt HTC-86100 Hydraulic Truck Crane

Link-Belt HTC-86100 Hydraulic Truck Crane

The HTC-86100 was built with excellent transportability and can be configured to meet some of the toughest transportation laws. Cruising to the next job site has never been so easy.

Powerful & Responsive Hydraulics

Six pump, pressure compensated hydraulic system allows simultaneous and precise function of boom hoist, winch and swing.

Reach Higher

Cylinders and cables control the boom giving the operator the flexibility to change boom length without fully retracting the boom.

The Confined Area Lifting Capacities (CALC)

The CALC system provides 3 outrigger positions and eliminates guesswork by automatically positioning outriggers at midpoint position.

Easy Access & Service

The pull-out CabWalk™ slides out from its secured travel position underneath the operator’s cab to give the operator a platform to stand on for easy entry and exit from the cab.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Hydraulic Truck Cranes.

Main Specs

  • Operating Weight 91086LBS
  • Horsepower 450HP
  • Emission Rating Tier 4i
  • Capacity Class 100 US Ton

Engine

  • Engine Make/Model Cummins / ISX12
  • Net Torque 1550LBF/FT
  • Rated Speed 1800rpm
  • Displacement 729in3

Drivetrain

  • Transmission Type ZF AS-TRONIC 12-speed automated (clutch-less)
  • Max Forward Speed 62mph
  • Tire Size Front: (4) 445/65R22.5 / Rear: (8) 12R22.5
  • Steering Modes 8x4x4 drive/steer for on/off highway travel
  • Fuel Tank Capacity 95 gal

Performance

Dimensions

  • Height Over Cab 11ft 5in
  • Width 8ft 6in
  • Width w/ Outriggers 26ft
  • Overall Length w/ Boom 45ft 7in
  • Wheelbase 23ft 10in

Boom

  • Boom Extension Modes (max tip height) EM1 (148ft) / EM2 (135ft) / EM3 (124ft) / EM4 (110ft) / EM5 (84ft)
  • Boom Lengths 38ft - 140ft (5 sections)
  • Boom Head Five 16.5in nylon sheaves
  • Boom Elevation -3° to 80°

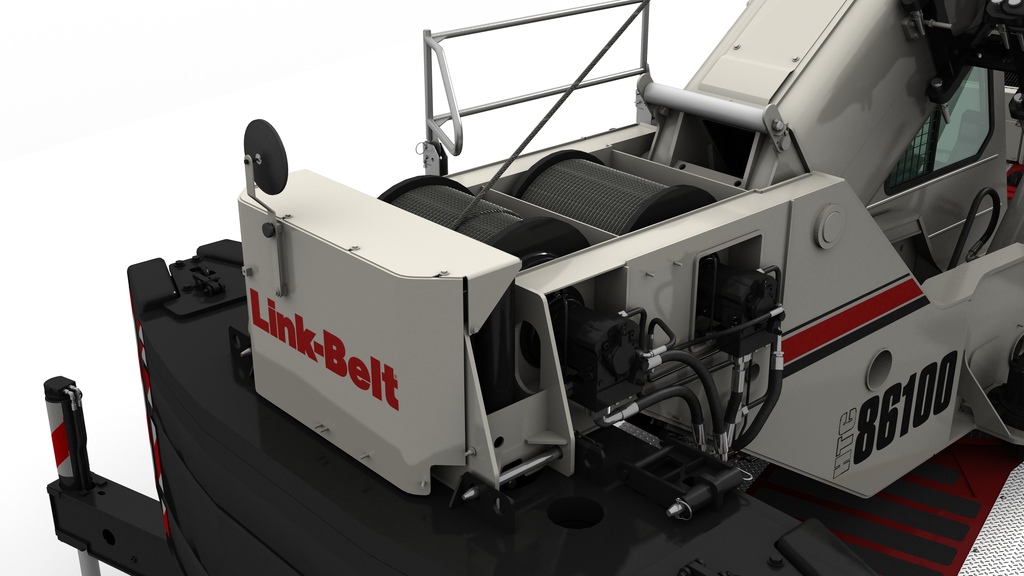

Load Hoist System

  • Max Winch Line Pull 16,880 lbs
  • Max Winch Line Speed 480 ft/min (@ 12,497 lbs)
  • Rope Length Main Wench: 730ft / Aux Winch: 600ft
  • Max Rope Storage 834ft
  • Drum Diameter 16in

Attachments

  • Max Tip Height (with optional lattice fly extension) 237 ft
  • Fly Attachment - 1 fixed piece (Optional) 35ft, offsettable to 2°, 15°, 30°, and 45° (182ft max height)
  • Fly Attachment - 2 piece bi-fold (Optional) 35ft - 58ft, offsettable to 2°, 15°, 30°, and 45° (205ft max height)
  • Fly Lattice Extension - 1 piece (Optional) 16ft (221ft max height)
  • Fly Lattice Extension - 2 piece (Optional) 16ft (237ft max height)
  • Hook Blocks (Optional) 40T, 4 sheave / 60T, 3 sheave / 90T, 6 sheave
  • Hook Balls (Optional) 8.5T - 10T, swivel & non-swivel

Carrier

  • Main Jack Breakout Force 106,000 lbf
  • Ground Bearing Pressure 218 PSI
  • Outrigger Pontoon Contact Area 485 in²
  • Suspension Type Raydan Air Link walking beam air suspension
  • Brakes Full Air ABS
  • Max Gradeability @ Peak Torque 1st Gear: 48.4% / 12th Gear: 3.1%
  • Counterweight Range 11,500 lbs - 39,500 lbs

Hydraulics

  • Hydraulic Tank Capacity 144 gal
  • Max Pump Flow 188 gal/min
  • Swing Speed 1.7 rpm
  • Filtration One 10-micron
