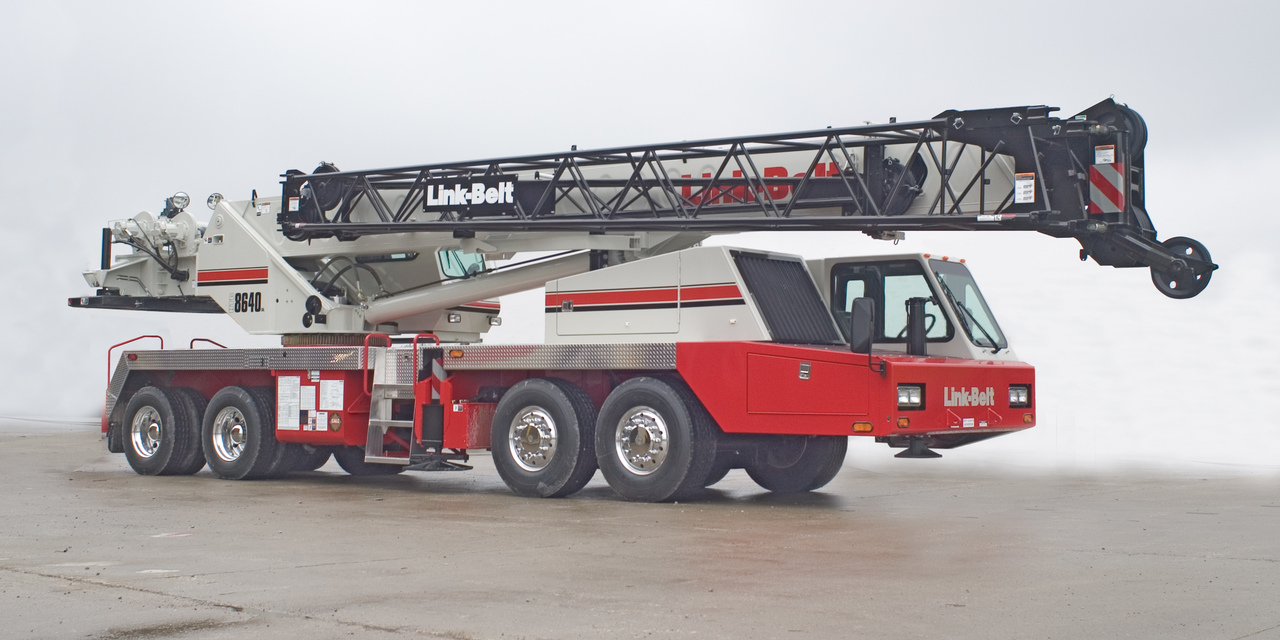

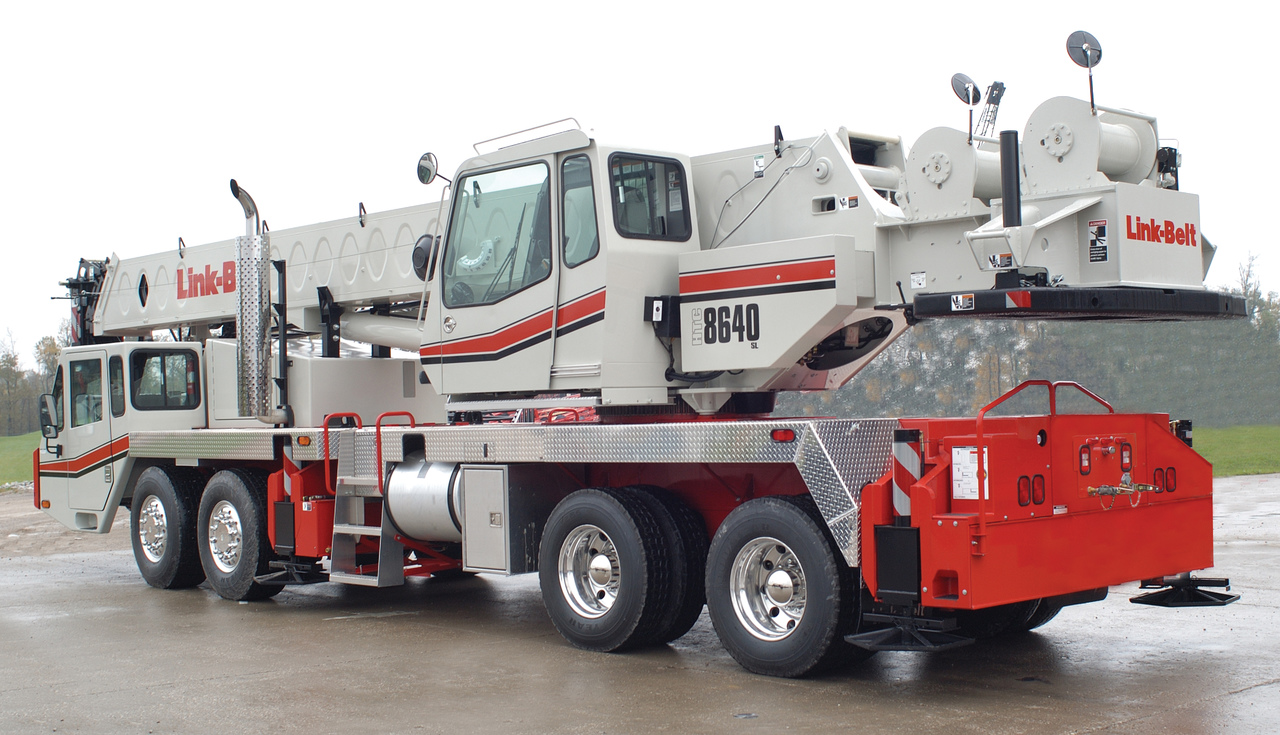

Link-Belt HTC-8640 Hydraulic Truck Crane

Link-Belt HTC-8640 Hydraulic Truck Crane

The RTC-80150 Series II features a full power boom fabricated from ultra-high-strength steel and formed in Link-Belt’s own facility, a tilting operator’s cab, a new on-board fly with extensions, and improved capacity.

Electronic Hydrostatic Drive

Because of the innovative 6x6x6 hydrostatic drive/steer on each wheel, the turning radius of the 30ft 2in long carrier is a remarkable 21ft 10in.

Powerful Hydraulics

For greater productivity and control, multiple pump hydraulic circuit allows simultaneous function.

The Confined Area Lifting Capacities (CALC)

The CALC system provides 3 outrigger positions and eliminates guesswork by automatically positioning outriggers at midpoint position.

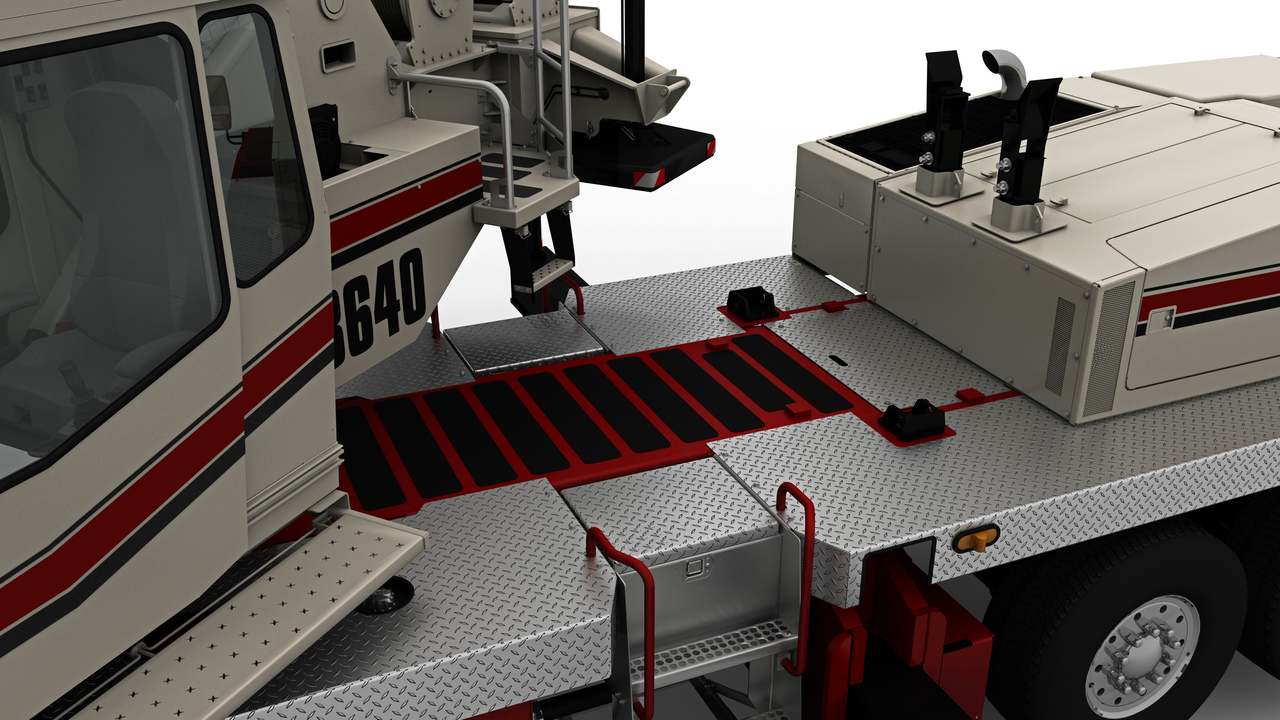

Easy Access & Service

Access is superb with strategically-located ladders, steps, catwalks and CabWalk.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Hydraulic Truck Cranes.

Main Specs

  • Operating Weight 65605LBS
  • Horsepower 370HP
  • Emission Rating Tier 4i
  • Capacity Class 40 US Ton

Engine

  • Engine Make/Model Cummins / ISL9
  • Net Torque 1250LBF/FT
  • Rated Speed 1700rpm
  • Displacement 543in3

Drivetrain

  • Transmission Type ZF AS-TRONIC 12-speed automated (clutch-less)
  • Max Forward Speed 60mph
  • Tire Size Front: (4) 425/65R22.5 / Rear: (8) 11R22.5
  • Steering Modes 8x4x4 drive/steer for on/off highway travel
  • Fuel Tank Capacity 75 gal

Performance

Dimensions

  • Height Over Cab 11ft
  • Width 7ft 9in
  • Width w/ Outriggers 20ft 6in
  • Overall Length w/ Boom 43ft 6in
  • Wheelbase 23ft 10in

Boom

  • Boom Extension Modes (max tip height) Standard (117ft) / A-max (68ft)
  • Boom Lengths 35.5ft - 110ft (4 sections)
  • Boom Head Four 16.5in nylon sheaves
  • Boom Elevation -3° to 78°

Load Hoist System

  • Max Winch Line Pull 15,871 lbs
  • Max Winch Line Speed 502 ft/min (@ 10,388 lbs)
  • Rope Length Main Wench: 550ft / Aux Winch: 450ft
  • Drum Diameter 16.63in

Attachments

  • Max Tip Height (with optional lattice fly extension) 167 ft
  • Fly Attachment - 1 fixed piece (Optional) 28.5ft, offsettable to 2°, 20°, and 40° (144ft max height)
  • Fly Attachment - 2 piece bi-fold (Optional) 28.5ft - 51ft, offsettable to 2°, 20°, and 40° (167ft max height)
  • Hook Blocks (Optional) 25T, 3 sheave / 40T, 4 sheave
  • Hook Balls (Optional) 8.5 US Ton, swivel & non-swivel

Carrier

  • Main Jack Breakout Force 76,000 lbf
  • Ground Bearing Pressure 157 PSI
  • Outrigger Pontoon Contact Area 485 in²
  • Suspension Type Raydan Air Link walking beam air suspension
  • Brakes Full Air ABS
  • Max Gradeability @ Peak Torque 1st Gear: 57% / 12th Gear: 2.5%
  • Counterweight Range 4,300 lbs - 7,900 lbs

Hydraulics

  • Hydraulic Tank Capacity 144 gal
  • Max Pump Flow 190 gal/min
  • Swing Speed 2.5 rpm
  • Filtration One 10-micron
