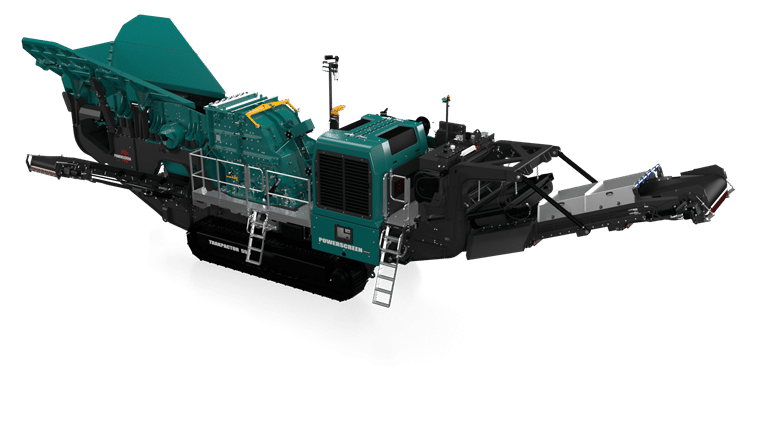

The Powerscreen Trakpactor 550 is a high-capacity horizontal shaft impact (HSI) crusher designed for processing soft to medium-hard materials in primary and secondary crushing applications. Built for performance and durability, the Trakpactor 550 is ideal for quarrying, recycling, demolition, and aggregate production.
Engineered to handle a wide range of materials, the Trakpactor 550 efficiently processes natural rock, asphalt, and construction and demolition waste. Its advanced impact crushing system delivers excellent reduction ratios and consistent product quality, making it suitable for producing high-quality aggregates and recycled materials.
Material is fed into a large feed hopper, available with either a vibrating grizzly feeder or live pre-screen configuration. Both options include a selectable crusher bypass facility and an optional fines discharge conveyor, allowing operators to remove fines before they enter the crushing chamber.
This setup helps:
Reduce unnecessary crusher wear
Improve efficiency and throughput
Enhance final product quality
The Trakpactor 550 features load-sensing technology, ensuring the wide crusher inlet receives a continuous feed of pre-screened material. This optimizes crusher performance while minimizing wear and maximizing production capacity.
At the core of the machine is a heavy-duty impact chamber featuring a twin apron and 4-bar rotor design. The crusher includes:
Hydraulic release aprons for protection against uncrushable material
Hydraulic setting adjustment for precise control of product size
Hydraulic overload protection to minimize damage and downtime
The crusher is directly driven via clutch from the engine, delivering optimum fuel efficiency and consistent power transfer.
The Powerscreen Trakpactor 550 is a high-capacity horizontal shaft impact (HSI) crusher designed for processing soft to medium-hard materials in primary and secondary crushing applications. Built for performance and durability, the Trakpactor 550 is ideal for quarrying, recycling, demolition, and aggregate production.
Engineered to handle a wide range of materials, the Trakpactor 550 efficiently processes natural rock, asphalt, and construction and demolition waste. Its advanced impact crushing system delivers excellent reduction ratios and consistent product quality, making it suitable for producing high-quality aggregates and recycled materials.
Material is fed into a large feed hopper, available with either a vibrating grizzly feeder or live pre-screen configuration. Both options include a selectable crusher bypass facility and an optional fines discharge conveyor, allowing operators to remove fines before they enter the crushing chamber.
This setup helps:
Reduce unnecessary crusher wear
Improve efficiency and throughput
Enhance final product quality
The Trakpactor 550 features load-sensing technology, ensuring the wide crusher inlet receives a continuous feed of pre-screened material. This optimizes crusher performance while minimizing wear and maximizing production capacity.
At the core of the machine is a heavy-duty impact chamber featuring a twin apron and 4-bar rotor design. The crusher includes:
Hydraulic release aprons for protection against uncrushable material
Hydraulic setting adjustment for precise control of product size
Hydraulic overload protection to minimize damage and downtime
The crusher is directly driven via clutch from the engine, delivering optimum fuel efficiency and consistent power transfer.
