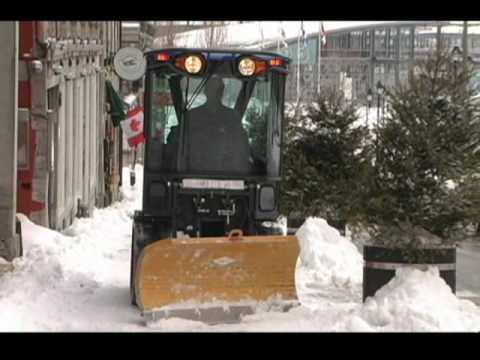

RPM Tech Cameleon Multi-Functional Vehicle

RPM Tech Cameleon Multi-Functional Vehicle

The RPM Tech Cameleon Multi-Functional Vehicle is a vehicle that can transform from a track vehicle to an articulated four wheel drive vehicle as needed. Equipped with a Caterpillar Diesel Tier 3, Tier 4 Flex, engine of 130 hp, the Cameleon supplies more hydraulic power and is the most powerful compact vehicle on the market.

Its certified ROPS and FOPS aluminum cabin, mounted on air ride suspension and shock absorbers, is safe and comfortable.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Main Specs

  • Horsepower 130 hp
  • Emission Rating Tier 3 / 4
  • Weight (lbs) 6,162 - 7,510

Engine

  • Engine Make/Model Caterpillar / C4.4
  • Net Torque 380LBF/FT
  • Rated Speed 2200rpm
  • Cylinders 4

Drivetrain

  • Transmission Type Sauer Danfoss Hydrostatic
  • Tire Size 4-season tires (P265-70R16)
  • Power Take-Off 1 3/8 in., 6-spline shaft, 540 rpm, 90 hp
  • Travel Mode Speed 25 mph
  • Work Mode Speed 12 mph
  • Pump Drive 80W90 - 2.2 L (0.6 gal)

Performance

Dimensions

Dimensions on Tracks

  • Height 85.5"
  • Width 50.9"
  • Length 134"
  • Ground Clearance 10"
  • Ground Pressure 3.8 PSI

Dimensions on Wheels

  • Height 86"
  • Width 50.5"
  • Length 134"
  • Wheelbase 80.25"
  • Ground Pressure 29 PSI
  • Turning Radius 135" (interior) / 190.2" (exterior)

Hydraulic System

  • Make / Type Sauer Danfoss / Gear pump
  • Fluid Capacity 11 gal
  • Max Operating Pressure 2,500 PSI
  • Pump Flow 22 gal/min @ 1,900 rpm
  • Filtration On return line to reservoir 15 microns with bypass; submerged tank filter for suction line
  • Quick Couplings Ten (10) front quick couplings including drain line and two (2) rear quick couplings

Attachments & Applications

  • Sweeper and water tank
  • Snow plow and spreader
  • Snow blower
  • Cold planer
  • Lawn mower
  • Boom flail mower
  • Front loader
  • Hydraulic watering arm
  • Hi-rail cleaning system
