Superior 80′ Pinnacle® Stacking Conveyor

Superior 80′ Pinnacle® Stacking Conveyor

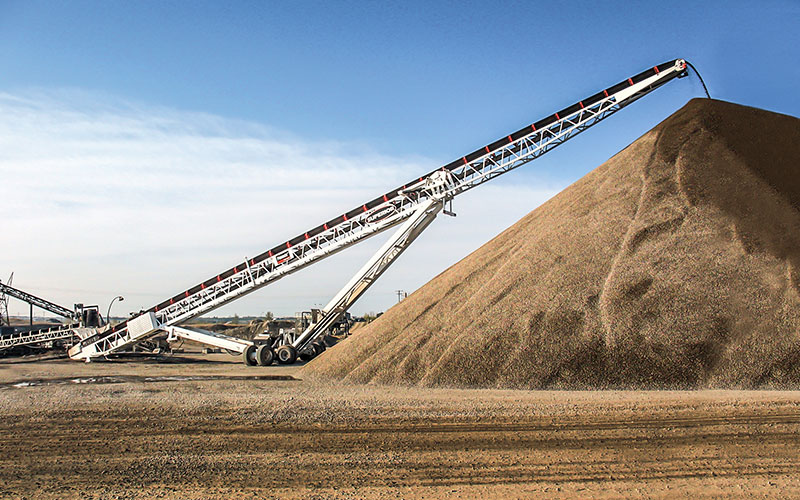

The Pinnacle Conveyor’s distinguishing feature is its 22 degree stockpiling incline. Standard conveyors only stockpile at 18 degrees. The Pinnacle Conveyor also has the capacity to stockpile 25-40% more material than standard radial stackers.

Conveyor dimensions available for the 80′ Pinnacle:

24′ x 80′ / 30′ x 80′ / 36′ x 80′ / 42′ x 80′

More Material on Less Real Estate

A 125 foot conveyor creating a 270 degree pile can stockpile over 100,000 tons of material.

Quick Setup

The FD (fold-down) Axle can hydraulically transfer from road to operation in seconds.

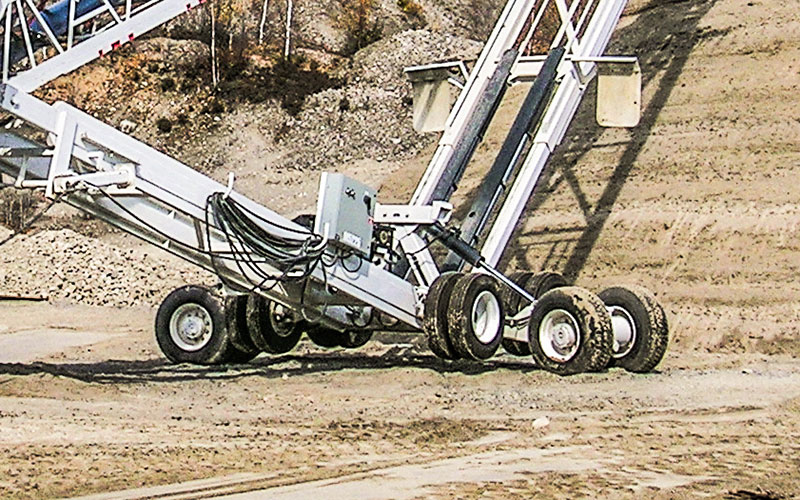

Heavy Duty Undercarriage

Equipped with a heavy duty undercarriage for stability, safety and support.

High Performance

With belt speeds running at 350 feet per minute, up to 1,200 tons per hour can be transferred.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Conveyors / Stackers.

Main Specs

  • Conveyor Length 80ft
  • Belt Widths 24" - 42"
  • Raised Stockpile Height 33ft
  • Max Stockpile Volume 21,100 yd³

Engine

Drivetrain

Performance

Dimensions

Operating Dimensions

  • Conveyor Ground Length 72ft 3in
  • Raised Height to Center of Pulley 32ft 5in
  • Lowered Height to Center of Pulley 18ft 1in
  • Anchor Pivot to Center of Axle 32ft 2in

Travel Dimensions

  • Travel Length - Kingpin to Rear 53ft 7in
  • Travel Height 13ft 5in
  • Travel Width 11ft 2in
  • Kingpin to End of Tow Eye 5ft 1in
  • Kingpin to Axle 34ft 7in
  • Axle to Head Pulley 19ft
  • FD Axle Size FD15
  • Weight at Axle - 36” Belt Width 20,000 lbs
  • Weight at Kingpin - 36” Belt Width 6,500 lbs

Stockpile Dimensions

  • Raised Stockpile Height 33ft
  • Lowered Stockpile Height 18ft 1in
  • Radius of Pile 42ft 2in
  • Anchor Pivot to Center of Pile 74ft 6in

Stockpile Capacities

  • Conical 2,500 yd³
  • 90° 8,600 yd³
  • 180° 14,900 yd³
  • 270° 21,100 yd³

Optional Equipment

  • Moxie® rollers
  • Exterra® SFL dual belt cleaner
  • Hydraulic Landing Jacks
  • On-board power
  • Modular 3-sided hopper w/ fold up wings
  • Sealing system
