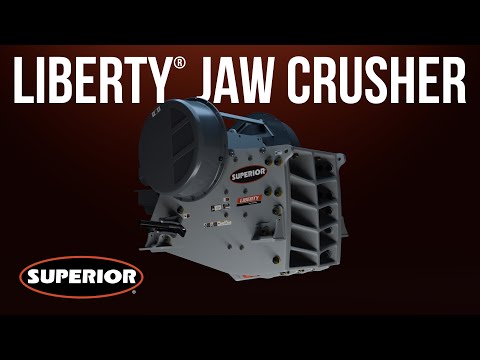

Engineers designed the Superior Liberty Jaw Crushers – Bolted models with a number of advantageous features including hydraulically controlled wedge and tensioning systems, pitman toe protection on jaw dies, and a frame-mounted motor that makes maintenance access easier.
All new frame construction with premium quality castings and components.
Hydraulic wedge adjustment capability gives operators easy access to closed side settings.
Fully-fabricated base frame for strength and longevity.
| Model | Weight (lb) |
Opening (in) |
CSS (in) |
Capacity (TPH) |
Max Feed (in) |
Power (hp) |
|---|---|---|---|---|---|---|
| 2055B | 42,000 | 20 x 55 | 2.00 – 7.00 | 110 – 385 | 16.0 | 150 |
| 2436B | 30,000 | 24 x 36 | 2.50 – 6.00 | 120 – 395 | 19.2 | 100 |
| 2842B | 32,000 | 28 x 42 | 3.00 – 6.00 | 165 – 410 | 22.4 | 150 |
| 3043B | 49,500 | 30 x 43 | 3.20 – 8.00 | 200 – 680 | 24.0 | 150 |
| 3055B | 59,500 | 30 x 55 | 3.00 – 8.00 | 265 – 855 | 24.0 | 200 |
| 3255B | 69,445 | 32 x 55 | 4.00 – 8.00 | 353 – 880 | 25.6 | 200 |
| 3448B | 62,000 | 34 x 48 | 3.00 – 8.00 | 185 – 615 | 27.2 | 200 |
| 3951B | 92,500 | 37 x 49 | 4.00 – 8.00 | 315 – 960 | 31.5 | 200 |
| 4355B | 117,500 | 43 x 55 | 6.00 – 10.00 | 440 – 990 | 34.4 | 300 |
| 4763B | 171,500 | 47 x 63 | 6.00 – 10.50 | 605 – 1,210 | 37.6 | 350 |
| 5978B | 297,000 | 59 x 78 | 8.00 – 12.00 | 770 – 1,595 | 47.2 | 500 |
Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.
