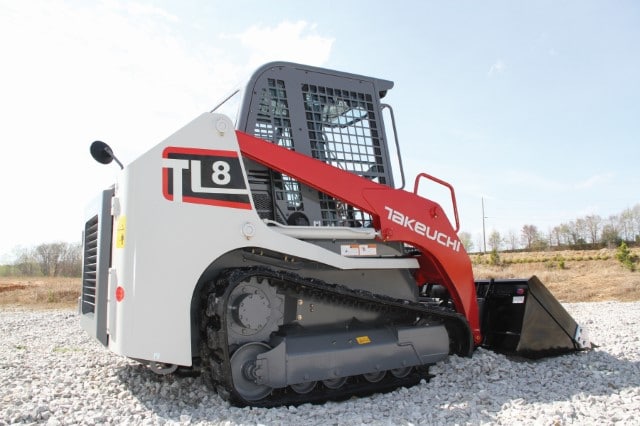

Takeuchi TL8 Compact Track Loader

Takeuchi TL8 Compact Track Loader

The Takeuchi TL8 Compact Track Loader is small enough to get into those tight areas, light enough to transport easily, and powerful enough to be your go to machine for landscaping and rental applications.

Total Package

Outstanding operating capacity coupled with tremendous breakout force allow you to get the job done more efficiently.

Steel to Steel Contact

Large heavy duty rollers and steel imbeds are utilized on the undercarriage for outstanding durability and value.

Operator Comfort

A deluxe high back suspension seat is standard equipment and features several adjustments including three height settings for optimal comfort and visibility.

Serviceability

The access panel located on the left tower provides excellent access to the hydraulic fill and filter, and the oil level is quickly checked using the easy to view sight gauge.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Skid Steer Loaders

Main Specs

  • Bucket Capacity 0.75YD3
    Compatible Range
  • Operating Weight 8631LBS
  • Horsepower 74.3HP
  • Emission Rating Tier 4 Final

Engine

  • Engine Make/Model Kubota / V3307-CR-Turbo
  • Net Torque 192LBF/FT
  • Rated Speed 1500rpm
  • Displacement 203in3
  • Cylinders 4
  • Fuel Tank Capacity 19.8 gal

Drivetrain

  • Transmission Type Hydrostatic
  • Controls Actuation Pilot joystick
  • Max Forward Speed 6.8mph
  • After Treatment System Diesel Particulate Filter
  • Undercarriage Type Hi Mount Drive Motor
  • Drive Method Sprocket - Double Reduction

Performance

  • Linkage Geometry Radial
  • Straight Tipping Load 6,020 lbs
  • Rated Operating Capacity 2,105 lbs
  • Bucket Breakout Force 6,856 lbs
  • Lift Arm Breakout Force 6,709 lbs
  • Traction Force 9,127 lbs
  • Hydraulic Power 32.2 hp
  • Pump Flow 18.4 gal/min

Dimensions

  • Transport Height 6ft 11.9in
  • Transport Length 11ft 3in
  • Width (no bucket) 5ft 5.4in
  • Max Lift Height to Bucket Pin 9ft 11in
  • Dump Height Fully Raised 7ft 9in
  • Max Dump Angle 38.5°
  • Dump Reach Fully Raised 2ft 4.7in
  • Max Bucket Rollback @ Ground 30°
  • Ground Clearance 12.1in

Undercarriage

  • Track Rollers 4
  • Track Shoe Width 15.7in
