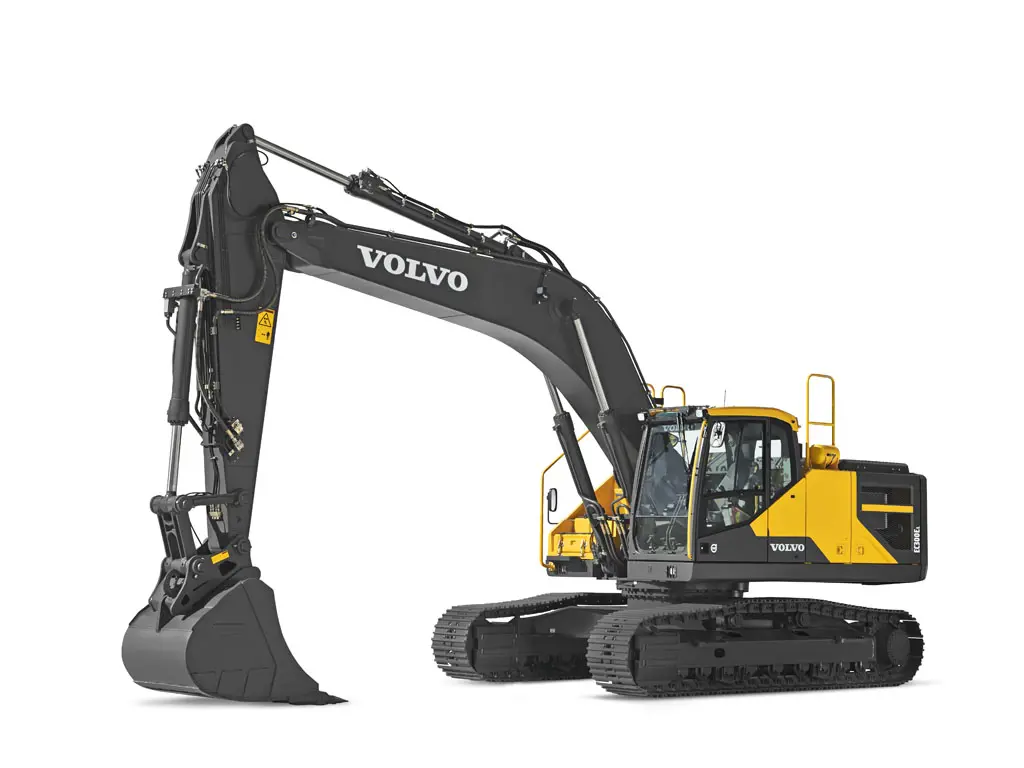

Volvo EC300E
It’s a fact that operators work more efficiently when they’re given the best tools for the job. That’s why, on top of being a superior production machine, the EC300E Excavator has an ergonomic design with ideally placed controls and switches. With built in comfort and optimized control, operators will work efficiently and productively all day long.
It’s a fact that operators work more efficiently when they’re given the best tools for the job. That’s why, on top of being a superior production machine, the EC300E Excavator has an ergonomic design with ideally placed controls and switches. With built in comfort and optimized control, operators will work efficiently and productively all day long.
Digging and Ditching Excavator Buckets
Digging and Ditching Excavator Buckets
Volvo Dig Assist
EC300E - Brochure
Request a Quote
Schedule a Demo
Contact Us
Main Specs
- Engine Output - Gross 253 hp (189 kW)
Description
- Operating Weight 69660 lbs (31590 kg)
- Standard Arm Length 10 ft (3050 mm)
Driveline
- Engine Manufacturer Volvo
- Engine Model D8M
- Displacement 470 Inches³ (7.7 ltr)
- Rated Speed 1600 rpm
- Engine Output - Net 252 hp (188 kW)
- Engine Output - Gross 253 hp (189 kW)
- Number Of Track Rollers - Each Side 9
- Track Shoe Width 32 inches (800 mm)
Dimensions
- Bucket Capacity 0.72-2.69 yd³ (0.55-2.06 m³)
- Bucket Weight 1946-3506 lbs (883-1590 kg)
- Transport Length Mono Boom 34 ft 5 in (10500 mm)
- Max Transport Height 11 ft 9 in (3580 mm)
- Max Machine Width 11 ft 5 in (3490 mm)
- Track Length On Ground 13 ft 3 in (4015 mm)
- Zero Tailswing No
- Heaped Bucket Capacity 1.73 yd³ (1.32 m³)
- Variable Undercarriage Availability No
- Ground Level Reach 34 ft 7 in (10520 mm)
- Dig Height 32 ft 9 in (9980 mm)
- Dump Height - Mono Boom 23 ft 2 in (7040 mm)
- Dig Depth 24 ft 1 in (7340 mm)
Capacities
- Fuel Tank 124.7 gallons (US) (472 ltr)
Performance
- Ground Bearing Pressure 6.63 PSI (45.7 kPa)
- Arm Tearout 33250 lbf (148 kN)
- Bucket Breakout 46450 lbf (207 kN)
- Number Of Main Pumps 2
- Main Pump - Flow 145.8 gallons (US) / min (552 lt/min)
