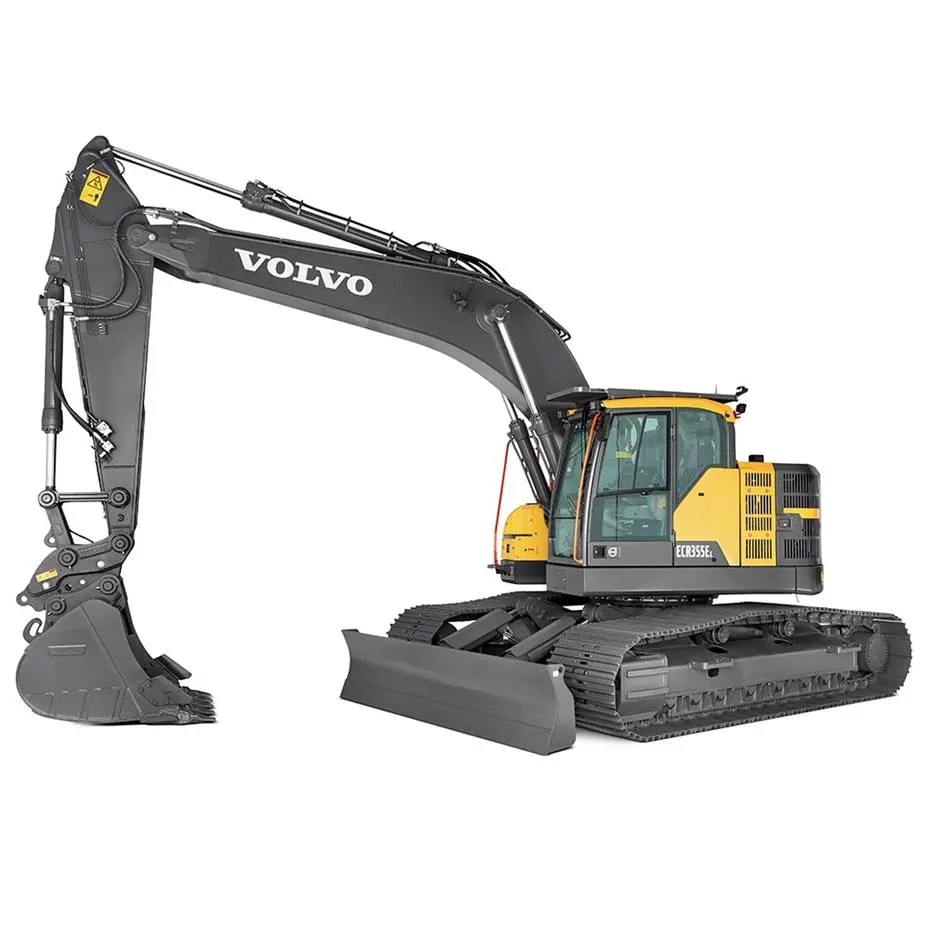

Volvo ECR355E
ACHIEVE A LOT WITH THIS SHORT SWING RADIUS MACHINE
Rely on the ECR355E short swing radius, offering solid stability, greater lifting capacity and digging force, proven durability and greater controllability. Access tight job sites thanks to the long list of standard features, cleverly-designed to ensure efficient operations and long-lasting performance.
ACHIEVE A LOT WITH THIS SHORT SWING RADIUS MACHINE
Rely on the ECR355E short swing radius, offering solid stability, greater lifting capacity and digging force, proven durability and greater controllability. Access tight job sites thanks to the long list of standard features, cleverly-designed to ensure efficient operations and long-lasting performance.
Digging and Ditching Excavator Buckets
Volvo Dig Assist
ECR355E - Brochure
Request a Quote
Schedule a Demo
Contact Us
Main Specs
- Engine Output - Gross 241 hp (180 kW)
Description
- Operating Weight 78057 lbs (35406 kg)
- Standard Arm Length 10 ft (3050 mm)
Driveline
- Engine Manufacturer Volvo
- Engine Model D 8J
- Displacement 476 Inches³ (7.8 ltr)
- Rated Speed 1800 rpm
- Engine Output - Net 240 hp (179 kW)
- Engine Output - Gross 241 hp (180 kW)
- Number Of Track Rollers - Each Side 8
- Track Shoe Width 34 inches (850 mm)
Dimensions
- Bucket Capacity 1.24-2.69 yd³ (0.95-2.06 m³)
- Bucket Weight 1755-3505 lbs (796-1590 kg)
- Max Transport Height 11 ft 10 in (3615 mm)
- Max Machine Width 11 ft 9 in (3590 mm)
- Track Length On Ground 13 ft 2 in (4020 mm)
- Zero Tailswing Yes
- Heaped Bucket Capacity 1.66 yd³ (1.27 m³)
- Variable Undercarriage Availability No
Capacities
- Fuel Tank 92 gallons (US) (348 ltr)
Performance
- Ground Bearing Pressure 6.8 PSI (47.1 kPa)
- Arm Tearout 33272 lbf (148 kN)
- Bucket Breakout 46985 lbf (209 kN)
- Number Of Main Pumps 2
- Main Pump - Flow 138 gallons (US) / min (526 lt/min)
