Superior 125′ Pinnacle® Stacking Conveyor

Superior 125′ Pinnacle® Stacking Conveyor

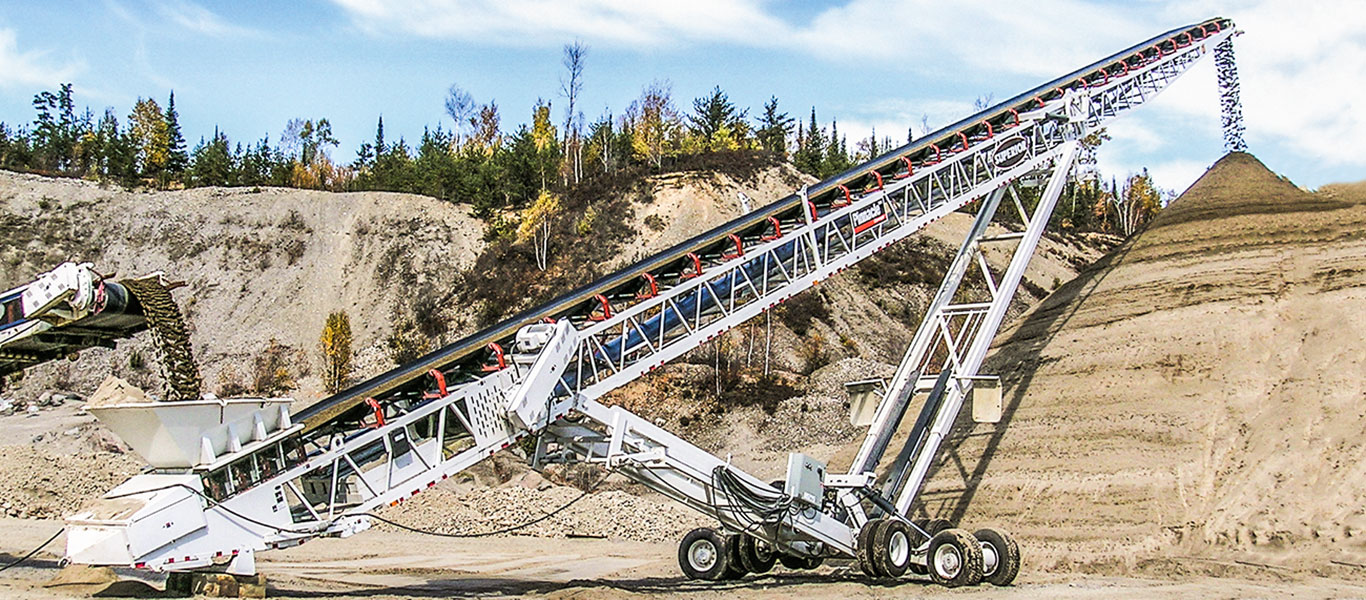

The Pinnacle Conveyor’s distinguishing feature is its 22 degree stockpiling incline. Standard conveyors only stockpile at 18 degrees. The Pinnacle Conveyor also has the capacity to stockpile 25-40% more material than standard radial stackers.

Conveyor dimensions available for the 125′ Pinnacle:

24′ x 125′ / 30′ x 125′ / 36′ x 125′ / 42′ x 125′

More Material on Less Real Estate

A 125 foot conveyor creating a 270 degree pile can stockpile over 100,000 tons of material.

Quick Setup

The FD (fold-down) Axle can hydraulically transfer from road to operation in seconds.

Heavy Duty Undercarriage

Equipped with a heavy duty undercarriage for stability, safety and support.

High Performance

With belt speeds running at 350 feet per minute, up to 1,200 tons per hour can be transferred.

ADDING VALUE TO YOUR BUSINESS

Customer Support Agreements – Genuine, High Quality Parts – Dedicated Product Support Representatives

Being a Power Equipment Company customer means having a complete set of services at your fingertips. Our promise is that we will be your loyal and long-standing partner, delivering the right solutions and support to power your business. We are committed to increasing the positive return on your investment and maximizing uptime.

Click here to view our used inventory of Conveyors / Stackers.

Main Specs

  • Conveyor Length 125ft
  • Belt Widths 24" - 42"
  • Raised Stockpile Height 50ft
  • Max Stockpile Volume 75,500 yd³

Engine

Drivetrain

Performance

Dimensions

Operating Dimensions

  • Conveyor Ground Length 116ft 4in
  • Raised Height to Center of Pulley 50ft 8in
  • Lowered Height to Center of Pulley 18ft 2in
  • Anchor Pivot to Center of Axle 46ft 5in

Travel Dimensions

  • Travel Length - Kingpin to Rear 84ft 2in
  • Travel Height 13ft 11in
  • Travel Width 11ft 6in
  • Kingpin to End of Tow Eye 5ft 6in
  • Kingpin to Axle 49ft 4in
  • Axle to Head Pulley 34ft 10in
  • FD Axle Size FD40
  • Weight at Axle - 36” Belt Width 39,500 lbs
  • Weight at Kingpin - 36” Belt Width 9,500 lbs

Stockpile Dimensions

  • Raised Stockpile Height 50ft
  • Lowered Stockpile Height 18ft 2in
  • Radius of Pile 66ft 5in
  • Anchor Pivot to Center of Pile 114ft 7in

Stockpile Capacities

  • Conical 8,500 yd³
  • 90° 31,000 yd³
  • 180° 52,900 yd³
  • 270° 75,000 yd³

Optional Equipment

  • Moxie® rollers
  • Exterra® SFL dual belt cleaner
  • Hydraulic Landing Jacks
  • On-board power
  • Modular 3-sided hopper w/ fold up wings
  • Sealing system

Ready to Roll? Call Us

800-883-9284

Superior 125′ Pinnacle® Stacking Conveyor

Tell us if you're interested in buying or renting this machine and a Power Equipment Company representative will be in touch with you ASAP.
