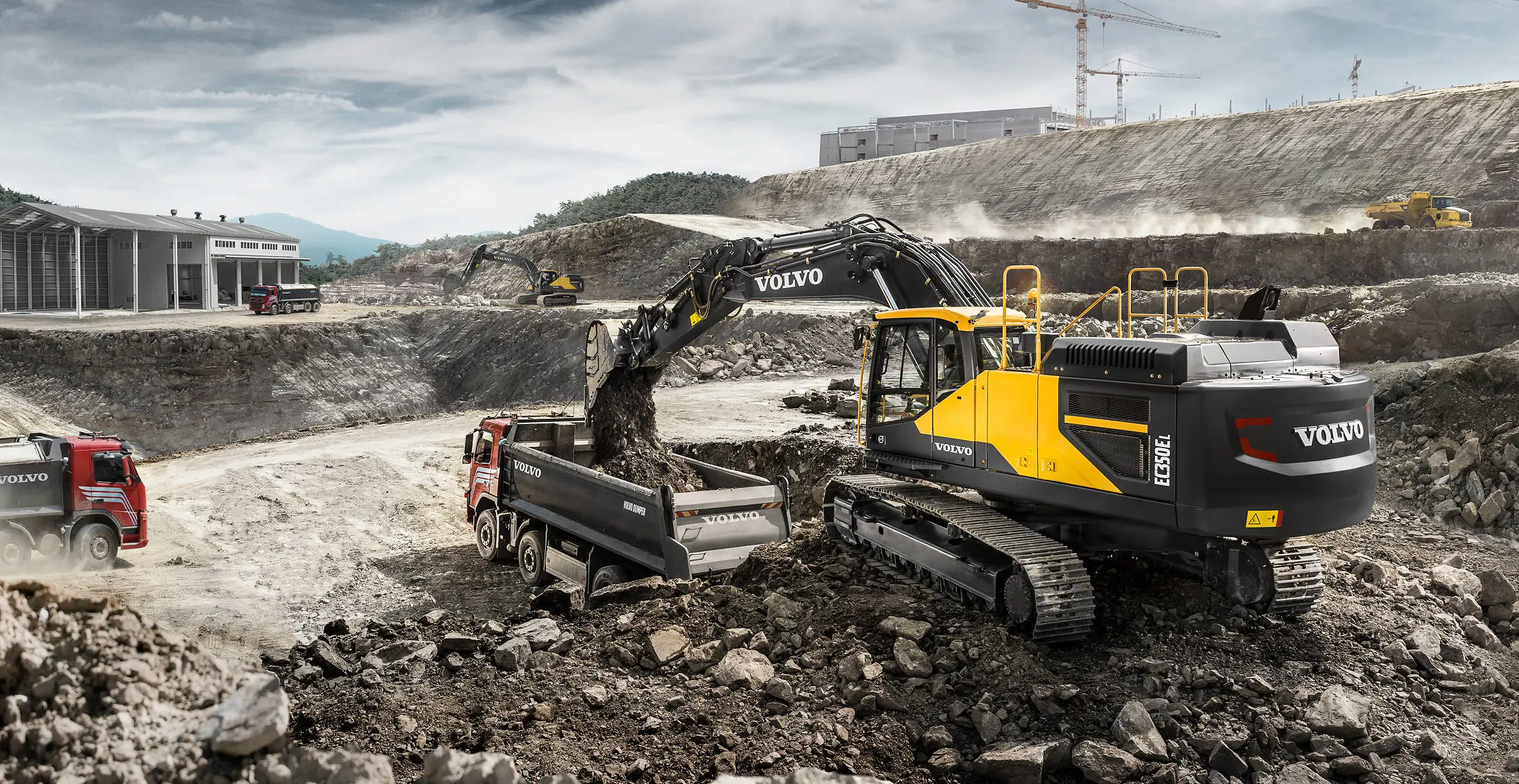

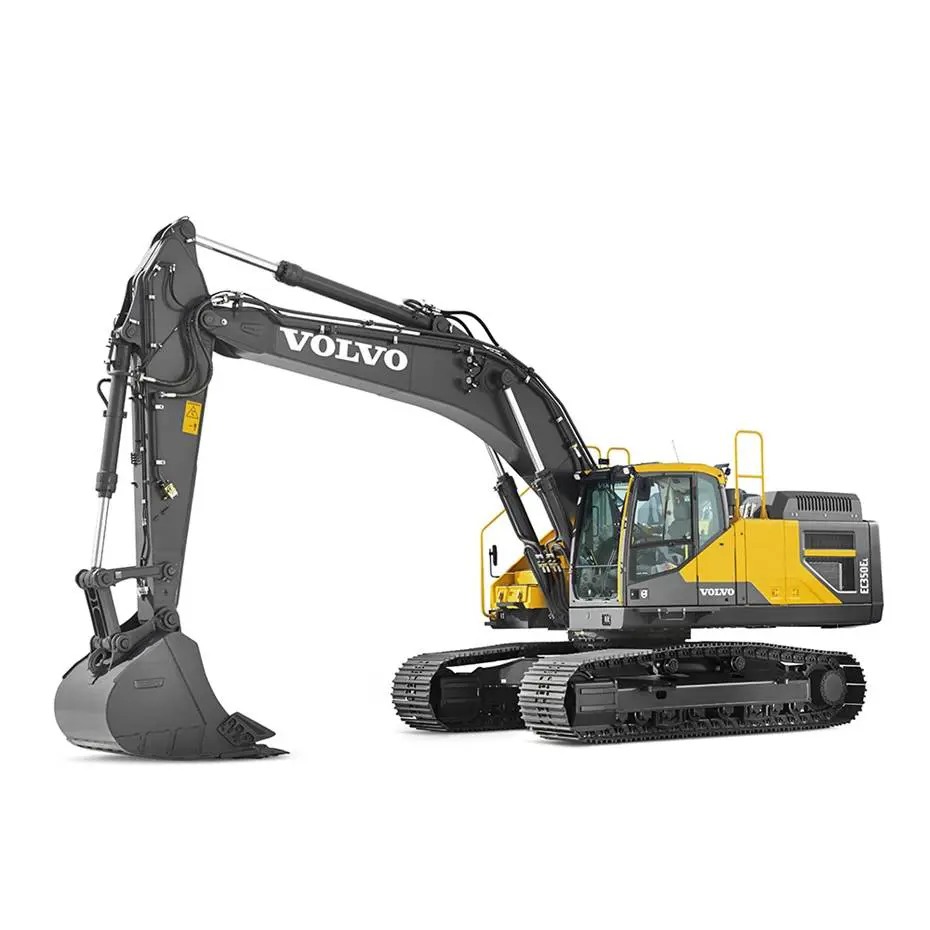

Volvo EC350E

Main Specs

• Engine Output - Gross 303 hp (226 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Standard Arm Length 10 ft 6 in (3200 mm)

Telematics

• Telematics Available Option

Driveline

• Engine Manufacturer Volvo
• Engine Model D 13J
• Displacement 781 Inches³ (12.8 ltr)
• Rated Speed 1700 rpm
• Engine Output - Net 302 hp (225 kW)
• Engine Output - Gross 303 hp (226 kW)
• Number Of Track Rollers - Each Side 8
• Track Shoe Width 32 inches (800 mm)

Dimensions

• Bucket Capacity 1.1-2.5 yd³ (0.87-1.92 m³)
• Bucket Weight 2808-4320 lbs (1274-1959 kg)
• Transport Length Mono Boom 36 ft 10 in (11226 mm)
• Max Transport Height 12 ft 4 in (3756 mm)
• Max Machine Width 11 ft 5 in (3490 mm)
• Track Length On Ground 13 ft 2 in (4020 mm)
• Zero Tailswing No
• Heaped Bucket Capacity 1.9 yd³ (1.42 m³)
• Bucket Width - Standard 48 inches (1200 mm)
• Track Gauge - Standard 8 ft 6 in (2590 mm)
• Variable Undercarriage Availability No
• Ground Level Reach 36 ft 2 in (11010 mm)
• Dig Height 34 ft 1 in (10380 mm)
• Dump Height - Mono Boom 23 ft 5 in (7145 mm)
• Dig Depth 24 ft 11 in (7585 mm)
• Mono Boom - Size 21 ft 2 in (6.45 m)
• Standard Arm 10 ft 6 in (3200 mm)
• Longest Arm 12 ft 10 in (3900 mm)

Capacities

• Fuel Tank 164 gallons (US) (620 ltr)

Performance

• Ground Bearing Pressure 7.4 PSI (51 kPa)
• Standard Shoe Width 32 inches (800 mm)
• Arm Tearout 40690 lbf (181 kN)
• Bucket Breakout 54560 lbf (242.7 kN)
• Main Pump Variable axial piston
• Number Of Main Pumps 2
• Main Pump - Flow 158 gallons (US) / min (600 lt/min)

Weights

• Operating Weight 82180 lbs (37270 kg)
