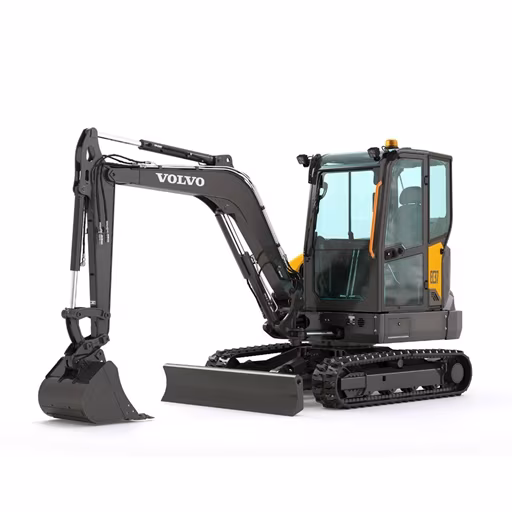

Volvo EC37

Main Specs

• Engine Output - Gross 24.8 hp (18.5 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Standard Arm Length 4 ft 7 in (1400 mm)

Driveline

• Engine Manufacturer Volvo
• Engine Model D1.7A
• Displacement 101 Inches³ (1.647 ltr)
• Rated Speed 2200 rpm
• Engine Output - Gross 24.8 hp (18.5 kW)
• Number Of Track Rollers - Each Side 4
• Track Shoe Width 12 inches (300 mm)

Dimensions

• Bucket Capacity 0.07-0.2 yd³ (0.052-0.15 m³)
• Transport Length Mono Boom 15 ft 1 in (4596 mm)
• Max Transport Height 8 ft 1 in (2458 mm)
• Max Machine Width 5 ft 10 in (1780 mm)
• Track Length On Ground 5 ft 5 in (1654 mm)
• Zero Tailswing No
• Variable Undercarriage Availability No
• Ground Level Reach 16 ft 3 in (4961 mm)
• Dig Height 15 ft 4 in (4684 mm)
• Dump Height - Mono Boom 11 ft 5 in (3468 mm)
• Dig Depth 10 ft 11 in (3338 mm)

Capacities

• Fuel Tank 18.5 gallons (US) (70 ltr)

Performance

• Ground Bearing Pressure 4.97 PSI (34.3 kPa)
• Arm Tearout 5078 lbf (22.59 kN)
• Bucket Breakout 7987 lbf (35.53 kN)
• Number Of Main Pumps 1
• Main Pump - Flow 29.1 gallons (US) / min (110 lt/min)

Weights

• Operating Weight 8345 lbs (3785 kg)
