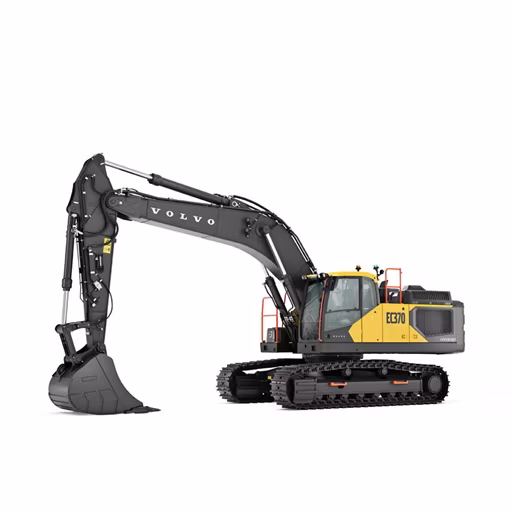

Volvo EC370

Main Specs

• Engine Output - Gross 339 hp (253 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Standard Arm Length 10 ft 6 in (3200 mm)

Telematics

• Telematics Available Yes

Driveline

• Engine Manufacturer Volvo
• Engine Model D13J
• Displacement 781 Inches³ (12.8 ltr)
• Rated Speed 1600 rpm
• Engine Output - Net 338 hp (252 kW)
• Engine Output - Gross 339 hp (253 kW)
• Number Of Track Rollers - Each Side 8
• Track Shoe Width 32 inches (800 mm)

Dimensions

• Bucket Capacity 1.14-2.51 yd³ (0.87-1.92 m³)
• Bucket Weight 2823-4410 lbs (1281-2000 kg)
• Transport Length Mono Boom 36 ft 11 in (11260 mm)
• Max Transport Height 12 ft 2 in (3720 mm)
• Max Machine Width 11 ft 2 in (3400 mm)
• Track Length On Ground 13 ft 2 in (4020 mm)
• Zero Tailswing No
• Variable Undercarriage Availability No
• Ground Level Reach 36 ft 1 in (11010 mm)
• Dig Height 34 ft (10370 mm)
• Dump Height - Mono Boom 23 ft 5 in (7140 mm)
• Dig Depth 24 ft 11 in (7590 mm)

Capacities

• Fuel Tank 159 gallons (US) (600 ltr)

Performance

• Ground Bearing Pressure 7.9 PSI (54.5 kPa)
• Arm Tearout 40690 lbf (181 kN)
• Bucket Breakout 54404 lbf (242 kN)
• Number Of Main Pumps 2
• Main Pump - Flow 152 gallons (US) / min (576 lt/min)

Weights

• Operating Weight 85160 lbs (38620 kg)
