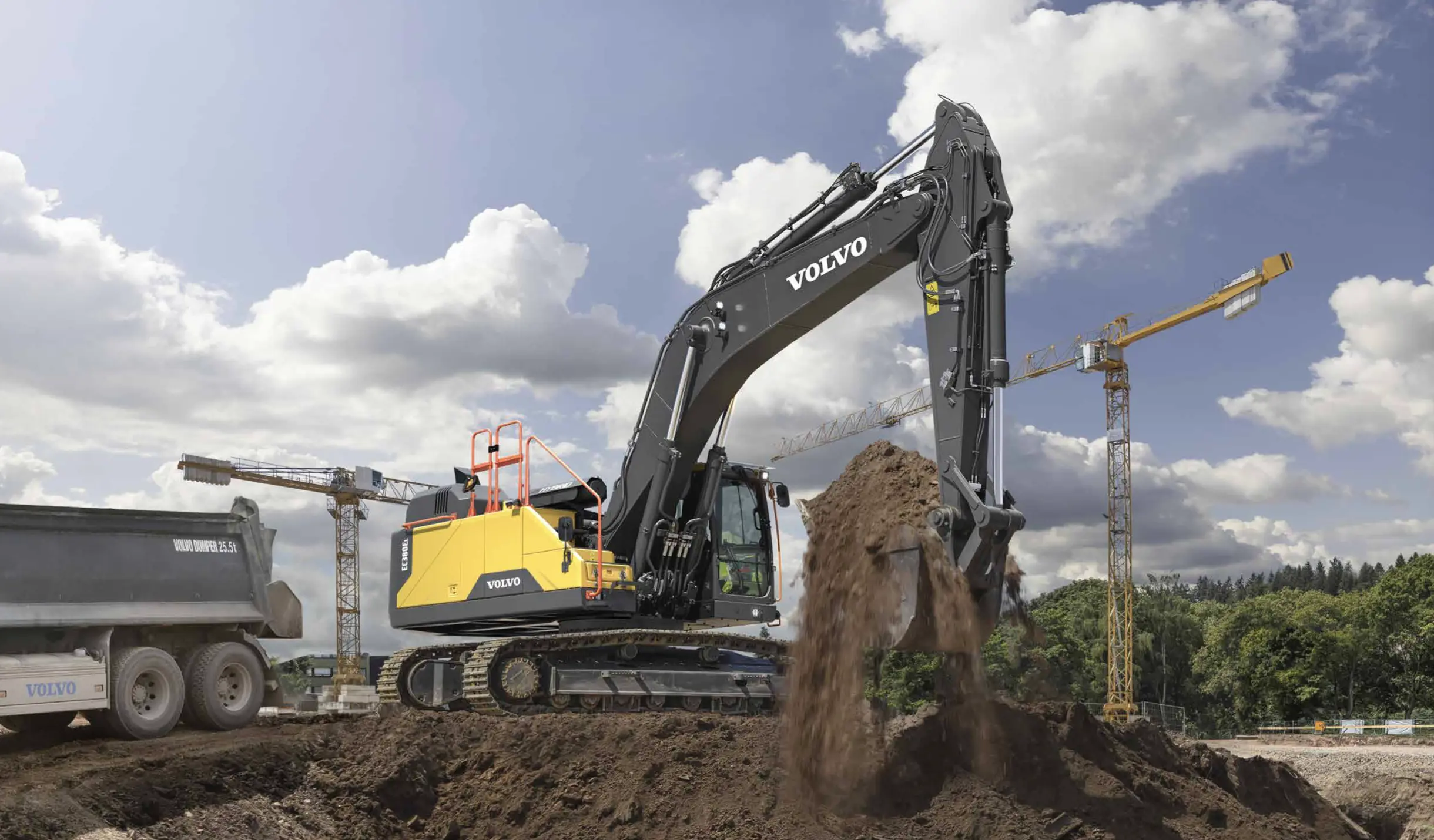

Volvo EC380E Hybrid

Main Specs

• Engine Output - Gross 308 hp (230 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Standard Arm Length 10 ft 6 in (3200 mm)

Telematics

• Telematics Available Standard

Driveline

• Engine Manufacturer Volvo
• Engine Model D13J
• Displacement 781 Inches³ (12.8 ltr)
• Rated Speed 1700 rpm
• Engine Output - Net 307 hp (229 kW)
• Engine Output - Gross 308 hp (230 kW)
• Number Of Track Rollers - Each Side 9
• Track Shoe Width 23.6 inches (600 mm)

Dimensions

• Bucket Capacity 0.87-2.33 yd³ (0.67-1.78 m³)
• Bucket Weight 2593-4378 lbs (1176-1986 kg)
• Transport Length Mono Boom 36 ft 10 in (11220 mm)
• Max Transport Height 12 ft 1 in (3685 mm)
• Max Machine Width 10 ft 11 in (3340 mm)
• Track Length On Ground 13 ft 11 in (4240 mm)
• Zero Tailswing No
• Variable Undercarriage Availability No
• Ground Level Reach 36 ft 1 in (11010 mm)
• Dig Height 34 ft (10370 mm)
• Dump Height - Mono Boom 23 ft 5 in (7140 mm)
• Dig Depth 24 ft 11 in (7590 mm)

Capacities

• Fuel Tank 164 gallons (US) (620 ltr)

Performance

• Ground Bearing Pressure 10.6 PSI (73.1 kPa)
• Arm Tearout 49255 lbf (219.1 kN)
• Bucket Breakout 54560 lbf (242.7 kN)
• Number Of Main Pumps 2
• Main Pump - Flow 158.6 gallons (US) / min (600 lt/min)

Weights

• Operating Weight 88416 lbs (40105 kg)
