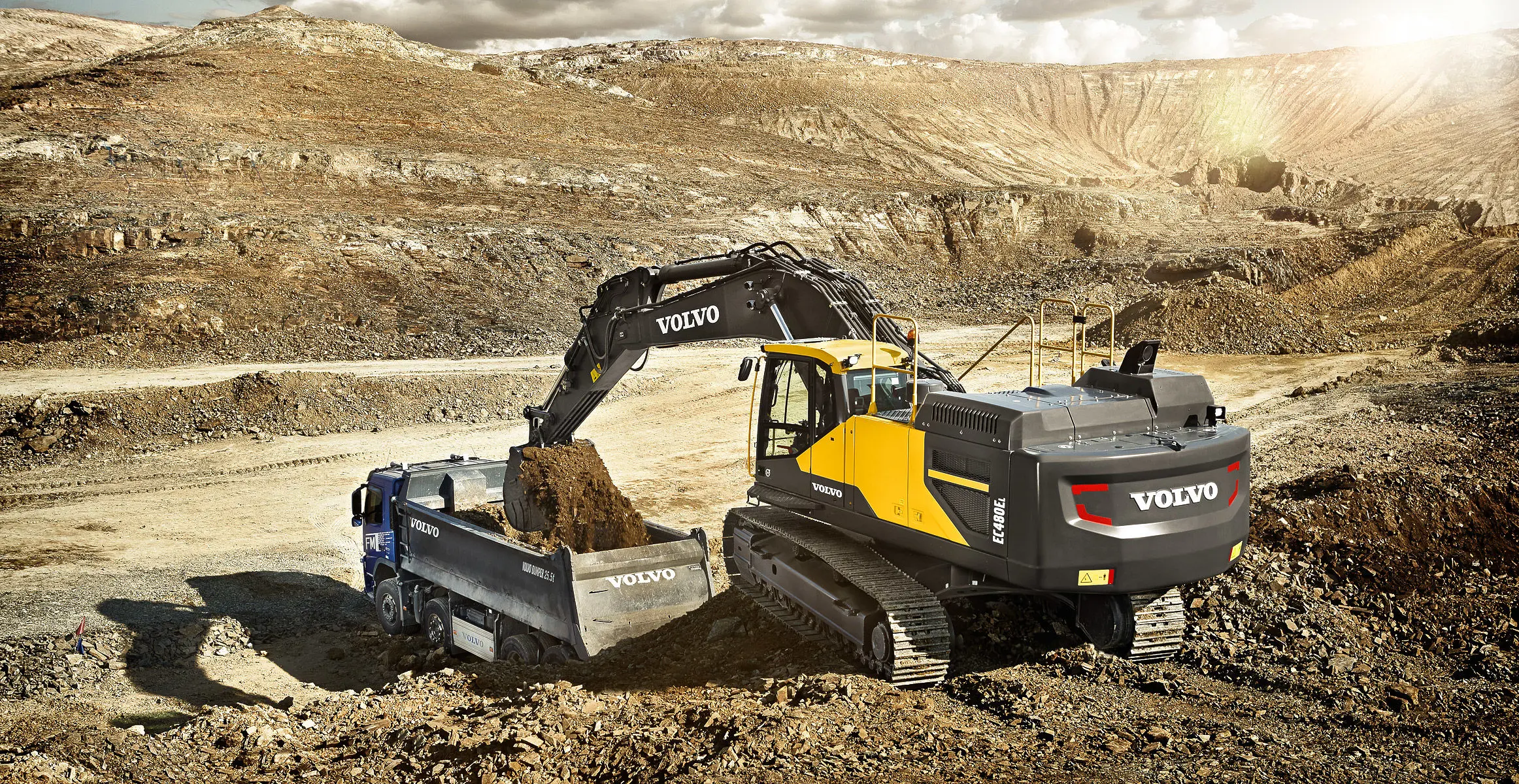

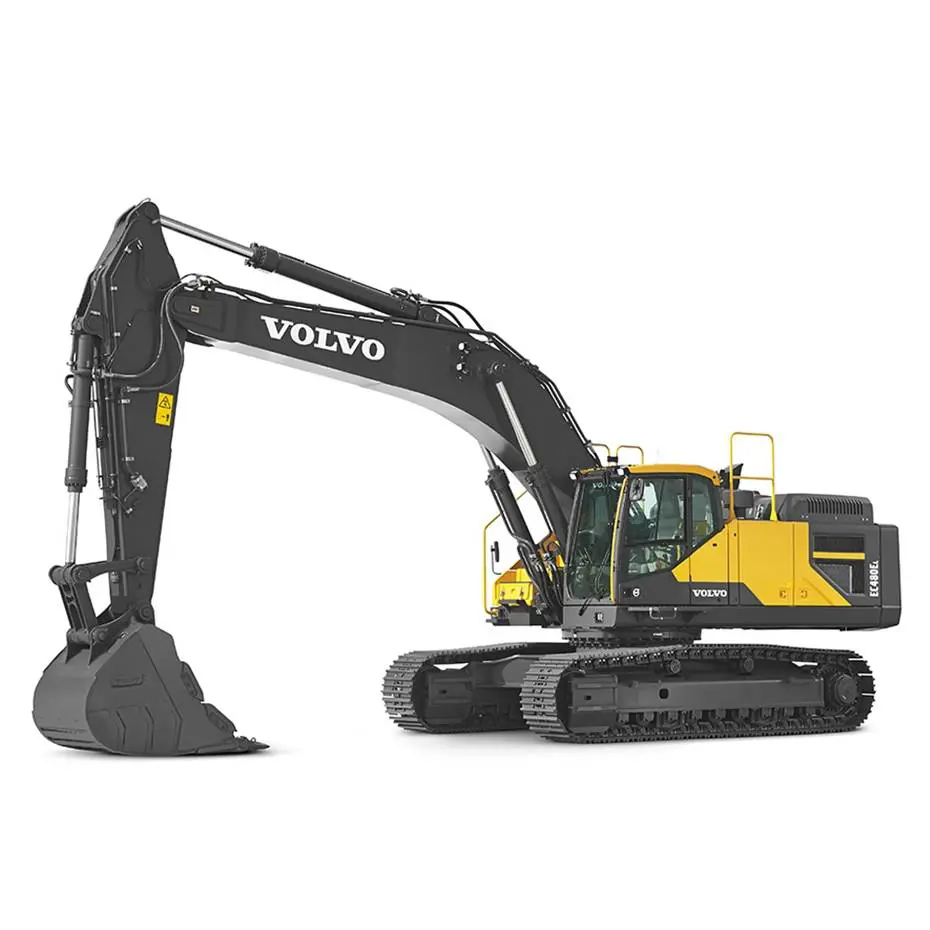

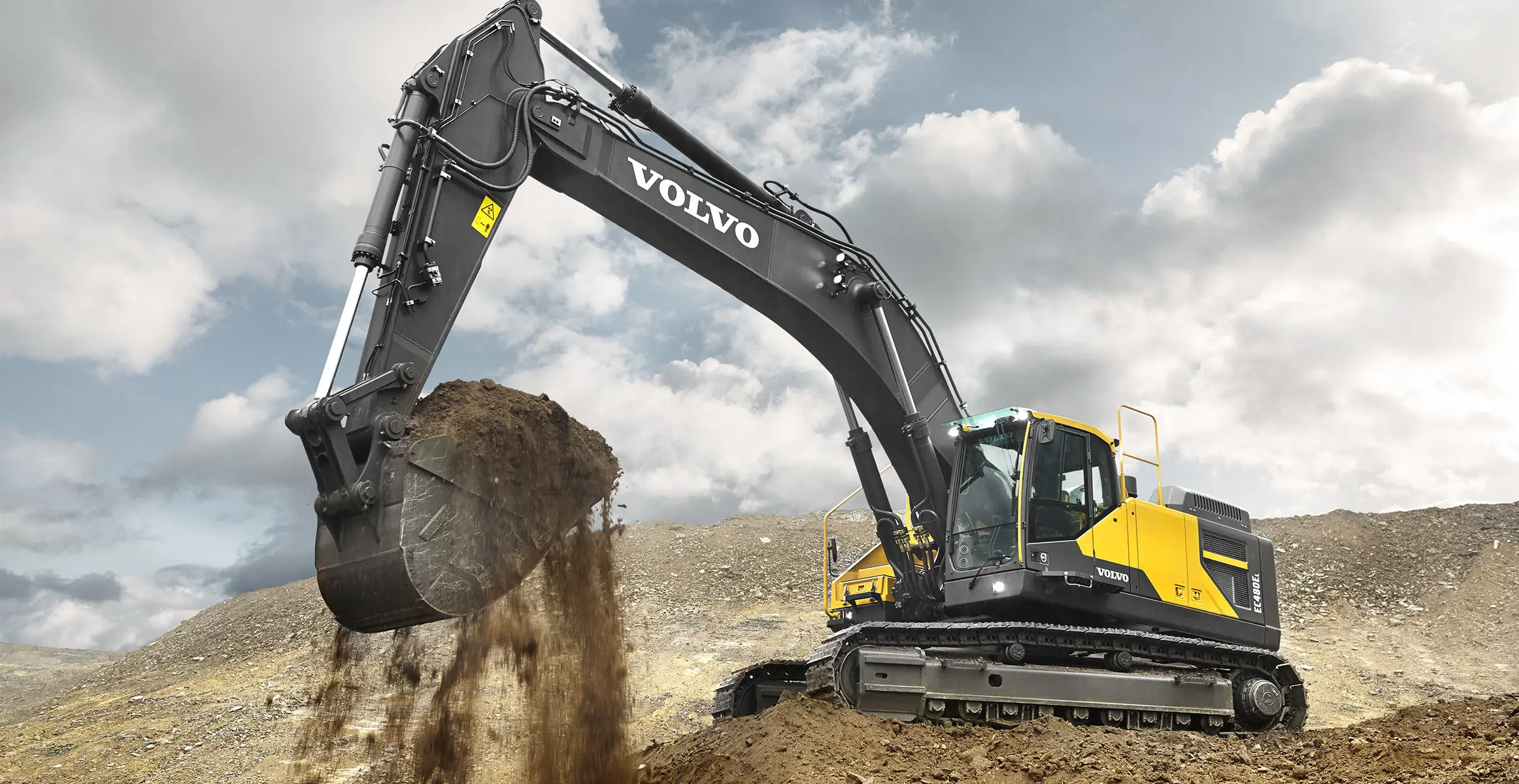

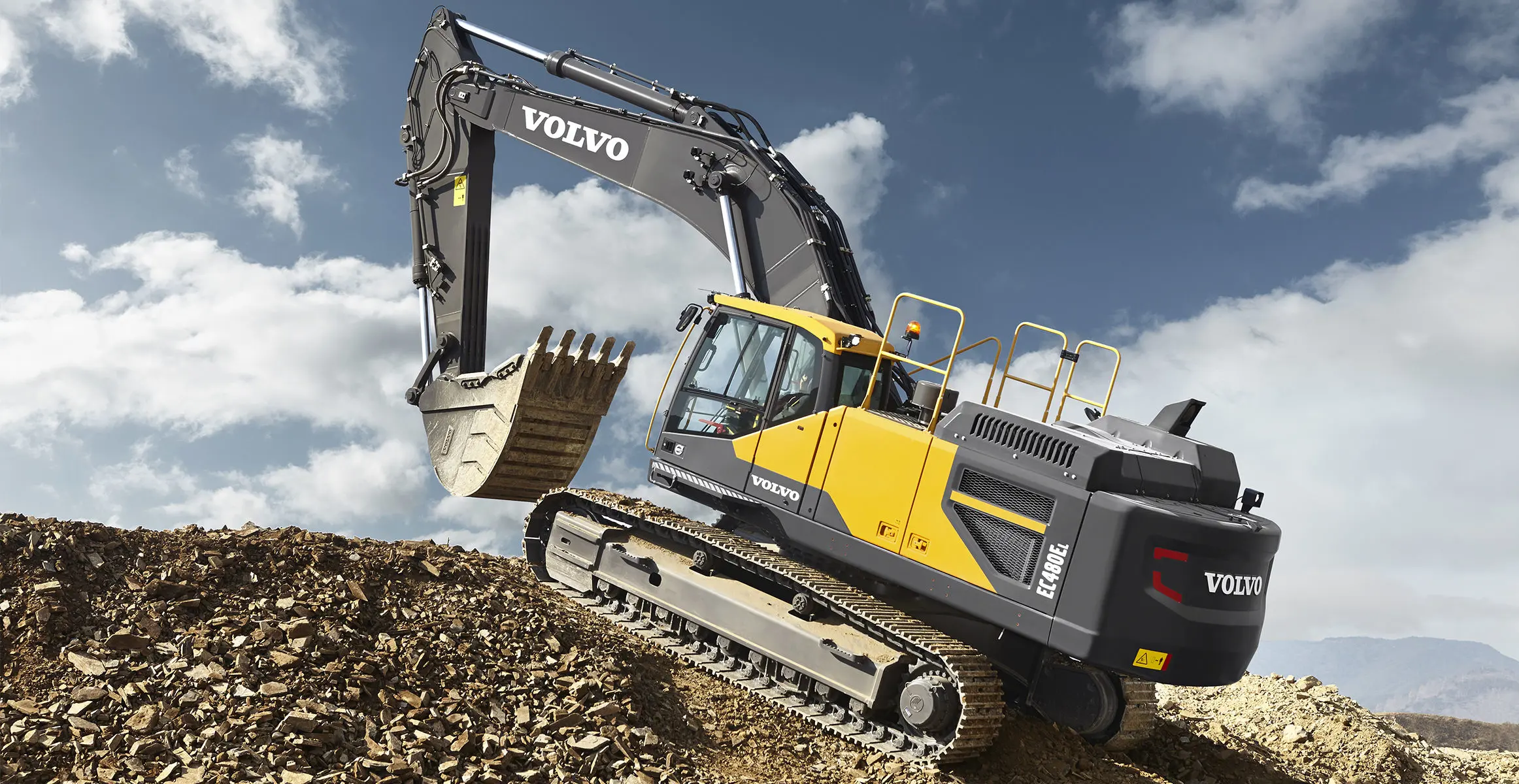

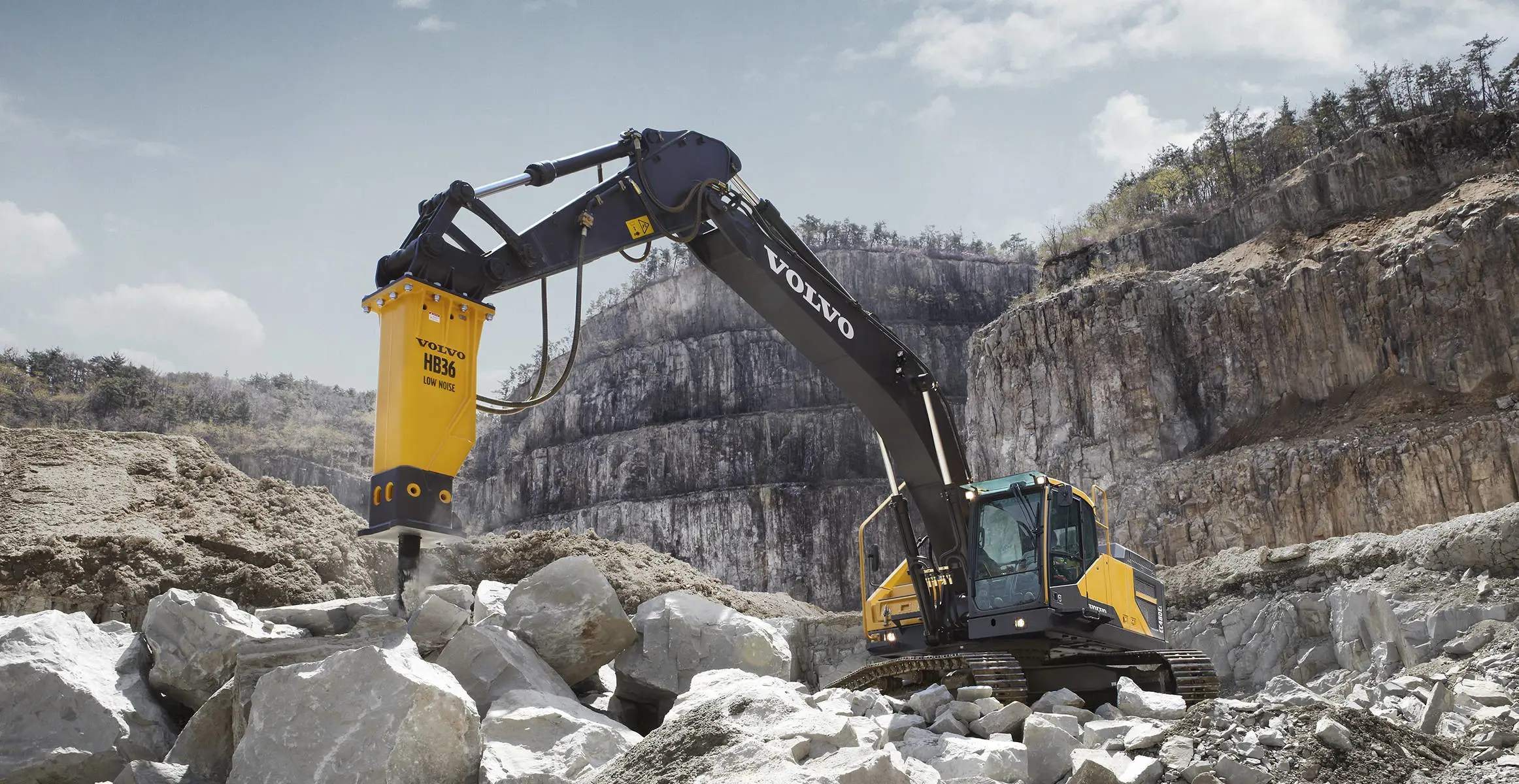

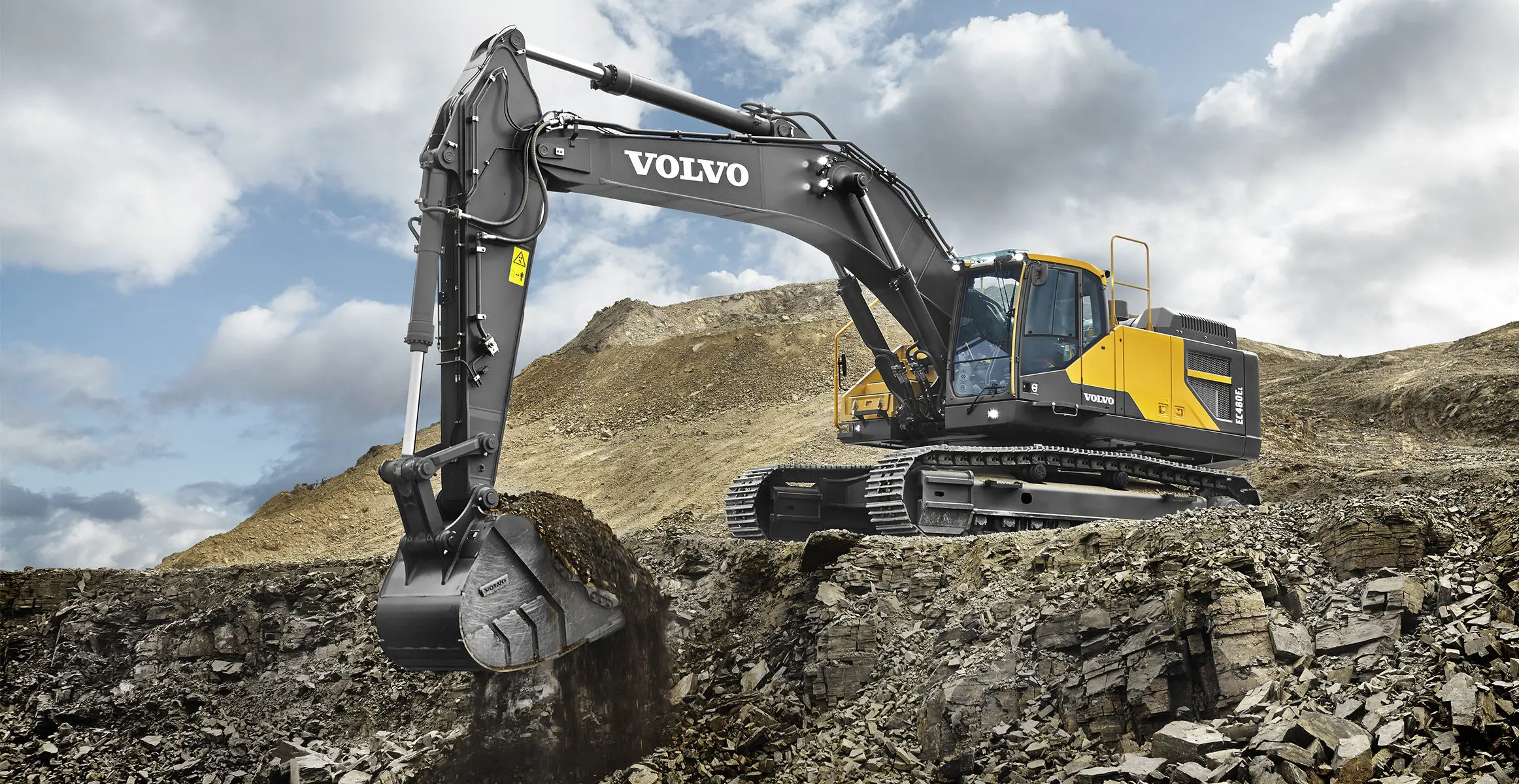

Volvo EC480E
Introducing the EC480E Excavator from Volvo – a powerful and efficient production machine designed to reduce fuel consumption and increase productivity. With advanced technology including Volvo’s unique ECO mode and a new electro-hydraulic control system, the EC480E delivers fuel efficiency improvement
Introducing the EC480E Excavator from Volvo – a powerful and efficient production machine designed to reduce fuel consumption and increase productivity. With advanced technology including Volvo’s unique ECO mode and a new electro-hydraulic control system, the EC480E delivers fuel efficiency improvement
Volvo Dig Assist
Digging and Ditching Excavator Buckets
Volvo Dig Assist
EC480E - Brochure
Request a Quote
Schedule a Demo
Contact Us
Main Specs
- Engine Output - Gross 381 hp (284 kW)
Description
- Operating Weight 108890 lbs (49381 kg)
- Standard Arm Length 11 ft (3350 mm)
Driveline
- Engine Manufacturer Volvo
- Engine Model D13J
- Displacement 781 Inches³ (12.8 ltr)
- Rated Speed 1800 rpm
- Engine Output - Net 380 hp (283 kW)
- Engine Output - Gross 381 hp (284 kW)
- Number Of Track Rollers - Each Side 9
- Track Shoe Width 36 inches (900 mm)
Dimensions
- Bucket Capacity 1.5-4.33 yd³ (1.15-3.31 m³)
- Bucket Weight 3589-5980 lbs (1627-2712 kg)
- Transport Length Mono Boom 40 ft 1 in (12215 mm)
- Max Transport Height 12 ft 3 in (3745 mm)
- Max Machine Width 11 ft 11 in (3640 mm)
- Track Length On Ground 14 ft 4 in (4370 mm)
- Zero Tailswing No
- Heaped Bucket Capacity 2.75 yd³ (2.1 m³)
- Variable Undercarriage Availability Option
- Ground Level Reach 39 ft 2 in (11927 mm)
- Dig Height 36 ft 4 in (11064 mm)
- Dump Height - Mono Boom 24 ft 8 in (7526 mm)
- Dig Depth 25 ft 8 in (7828 mm)
Capacities
- Fuel Tank 179.6 gallons (US) (680 ltr)
Performance
- Ground Bearing Pressure 8.7 PSI (60 kPa)
- Arm Tearout 49435 lbf (220 kN)
- Bucket Breakout 63935 lbf (284 kN)
- Number Of Main Pumps 2
- Main Pump - Flow 198.6 gallons (US) / min (752 lt/min)
