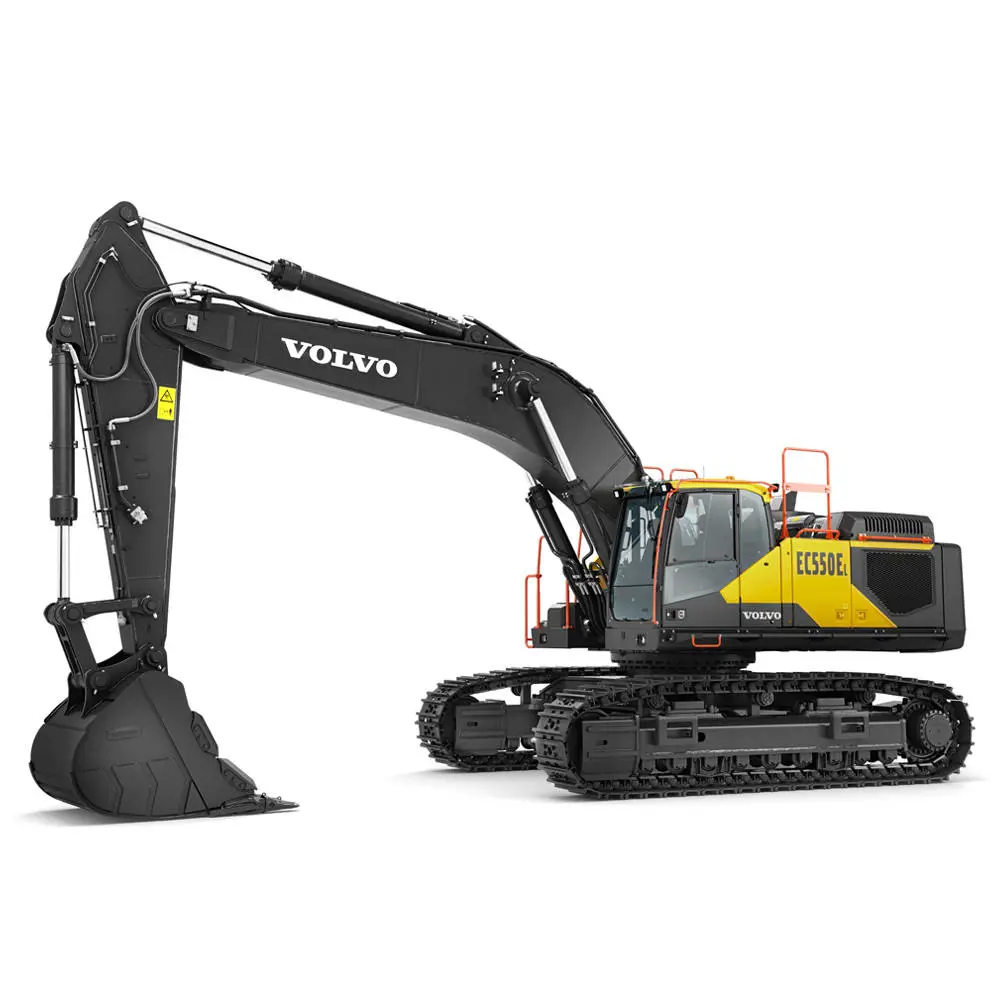

Volvo EC550E

Main Specs

• Engine Output - Gross 456 hp (340 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Standard Arm Length 11 ft (3350 mm)

Telematics

• Telematics Available Standard

Driveline

• Engine Manufacturer Volvo
• Engine Model D 13J
• Displacement 781 Inches³ (12.8 ltr)
• Rated Speed 1600 rpm
• Engine Output - Net 445 hp (339 kW)
• Engine Output - Gross 456 hp (340 kW)
• Number Of Track Rollers - Each Side 9
• Track Shoe Width 36 inches (900 mm)

Dimensions

• Bucket Capacity 3.71-6.02 yd³ (2.84-4.6 m³)
• Bucket Weight 5632-7415 lbs (2554-3363 kg)
• Transport Length Mono Boom 40 ft 2 in (12240 mm)
• Max Transport Height 13 ft 9 in (4200 mm)
• Max Machine Width 13 ft 9 in (4200 mm)
• Track Length On Ground 14 ft 10 in (4515 mm)
• Zero Tailswing No
• Heaped Bucket Capacity 4.33 yd³ (3.31 m³)
• Variable Undercarriage Availability Yes
• Ground Level Reach 39 ft 2 in (11930 mm)
• Dig Height 36 ft 9 in (11210 mm)
• Dump Height - Mono Boom 25 ft 6 in (7760 mm)
• Dig Depth 25 ft 3 in (7690 mm)

Capacities

• Fuel Tank 180 gallons (US) (680 ltr)

Performance

• Ground Bearing Pressure 9.2 PSI (63.5 kPa)
• Arm Tearout 53980 lbf (240 kN)
• Bucket Breakout 69270 lbf (308 kN)
• Number Of Main Pumps 2
• Main Pump - Flow 220 gallons (US) / min (832 lt/min)

Weights

• Operating Weight 125575 lbs (56960 kg)
