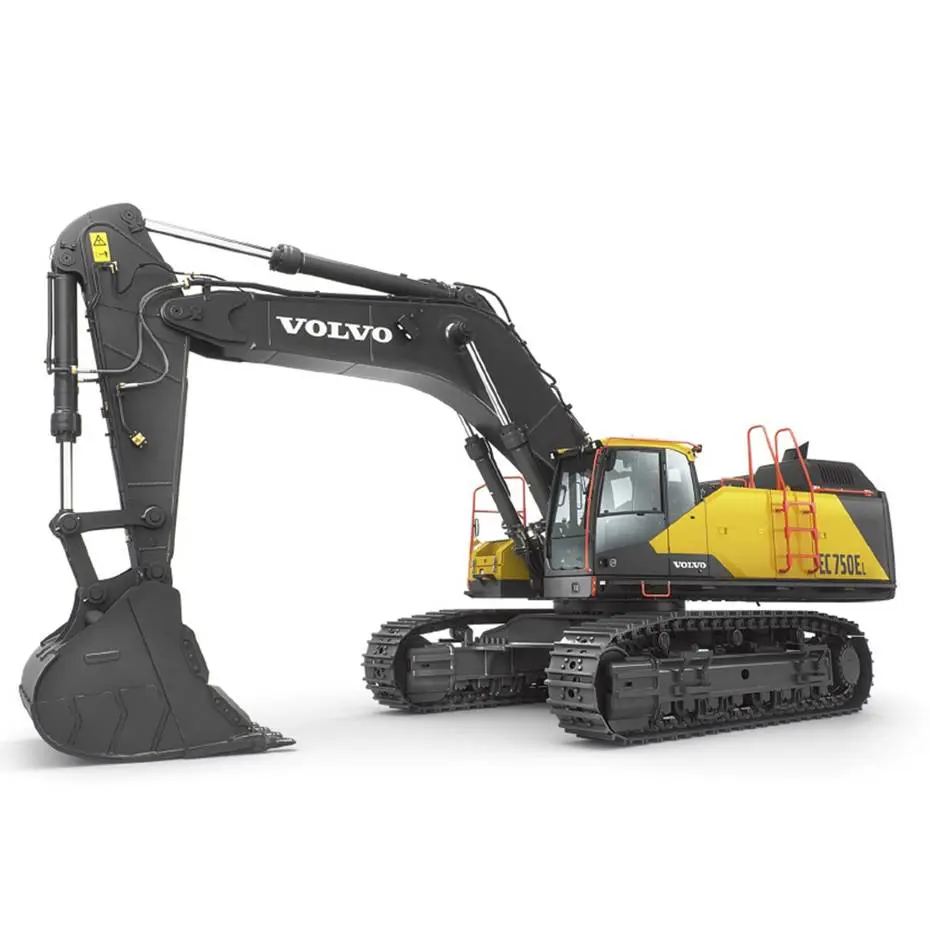

Volvo EC750E

Main Specs

• Engine Output - Gross 527 hp (393 kW)

Engine

Drivetrain

Performance

Dimensions

Description

• Operating Weight 165150 lbs (74900 kg)
• Standard Arm Length 11 ft 8 in (3550 mm)

Telematics

• Telematics Available Yes

Driveline

• Engine Manufacturer Volvo
• Engine Model D16J
• Displacement 982 Inches³ (16.1 ltr)
• Rated Speed 1800 rpm
• Engine Output - Net 526 hp (392 kW)
• Engine Output - Gross 527 hp (393 kW)
• Number Of Track Rollers - Each Side 8
• Track Shoe Width 36 inches (900 mm)

Dimensions

• Bucket Capacity 4.1-9.34 yd³ (3.14-7.14 m³)
• Bucket Weight 8988-13380 lbs (4077-6069 kg)
• Transport Length Mono Boom 43 ft 5 in (13220 mm)
• Max Transport Height 16 ft 3 in (4950 mm)
• Max Machine Width 14 ft 4 in (4340 mm)
• Track Length On Ground 15 ft 8 in (4750 mm)
• Zero Tailswing No
• Heaped Bucket Capacity 4.3 yd³ (3.3 m³)
• Variable Undercarriage Availability Yes
• Ground Level Reach 42 ft 3 in (12870 mm)
• Dig Height 41 ft 5 in (12600 mm)
• Dump Height - Mono Boom 28 ft 5 in (8650 mm)
• Dig Depth 27 ft 6 in (8370 mm)
• Mono Boom - Size 25 ft 3 in (7.7 m)
• Standard Arm 11 ft 8 in (3550 mm)
• Longest Arm 13 ft 10 in (4200 mm)

Capacities

• Fuel Tank 211 gallons (US) (800 ltr)

Performance

• Ground Bearing Pressure 11.4 PSI (78.6 kPa)
• Standard Shoe Width 36 inches (900 mm)
• Arm Tearout 67000 lbf (298 kN)
• Bucket Breakout 80710 lbf (359 kN)
• Main Pump Variable axial piston
• Number Of Main Pumps 2
• Main Pump - Flow 237.8 gallons (US) / min (900 lt/min)
