Volvo ECR88D

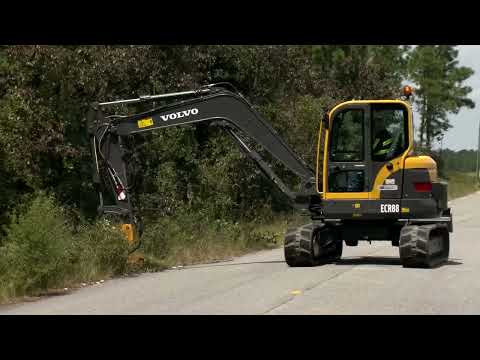

The ECR88D compact short swing radius excavator features a powerful Volvo engine and perfectly matched hydraulic system, delivering high performance, excellent control and low fuel consumption. Sustain optimum power and productivity with Volvo.
The ECR88D compact short swing radius excavator features a powerful Volvo engine and perfectly matched hydraulic system, delivering high performance, excellent control and low fuel consumption. Sustain optimum power and productivity with Volvo.
Digging and Ditching Excavator Buckets
Volvo Dig Assist
ECR88D - Brochure
Request a Quote
Schedule a Demo
Contact Us
Main Specs
- Engine Output - Gross 57 hp (42.4 kW)
Description
- Standard Arm Length 5 ft 7 in (1700 mm)
Driveline
- Engine Manufacturer Volvo
- Engine Model D 2.6H
- Displacement 160 Inches³ (2.62 ltr)
- Rated Speed 2000 rpm
- Engine Output - Net 55 hp (41 kW)
- Engine Output - Gross 57 hp (42.4 kW)
- Number Of Track Rollers - Each Side 5
- Track Shoe Width 18 inches (450 mm)
Dimensions
- Bucket Capacity 0.1-0.44 yd³ (0.079-0.333 m³)
- Bucket Weight 250-450 lbs (111-205 kg)
- Transport Length Mono Boom 20 ft 11 in (6370 mm)
- Max Transport Height 8 ft 11 in (2715 mm)
- Max Machine Width 8 ft (2450 mm)
- Track Length On Ground 7 ft 3 in (2200 mm)
- Zero Tailswing No
- Heaped Bucket Capacity 0.35 yd³ (0.266 m³)
- Variable Undercarriage Availability Yes
- Ground Level Reach 22 ft 4 in (6800 mm)
- Dig Height 22 ft 3 in (6790 mm)
- Dump Height - Mono Boom 16 ft 3 in (4960 mm)
- Dig Depth 13 ft 7 in (4130 mm)
Capacities
- Fuel Tank 29 gallons (US) (110 ltr)
Performance
- Ground Bearing Pressure 5.9 PSI (40.3 kPa)
- Arm Tearout 8950 lbf (39.8 kN)
- Bucket Breakout 12860 lbf (57.2 kN)
- Number Of Main Pumps 2
- Main Pump - Flow 50 gallons (US) / min (190 lt/min)
Weights
- Operating Weight 19758 lbs (8962 kg)
