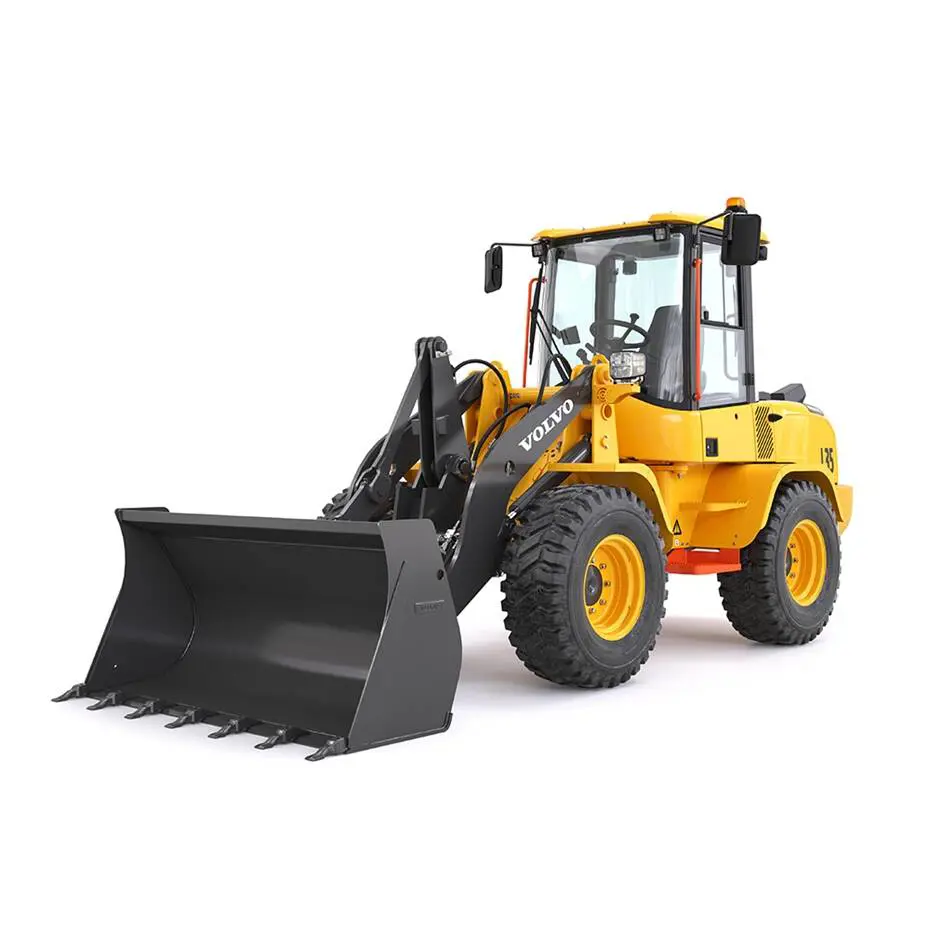

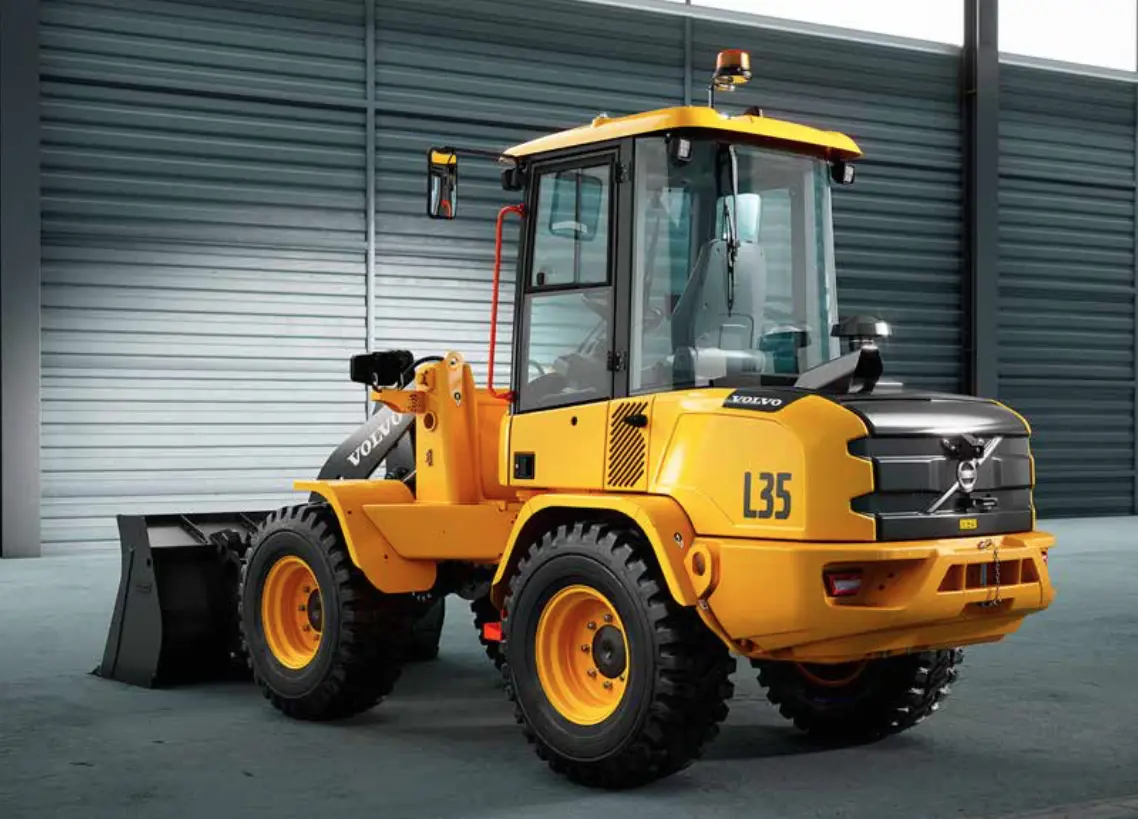

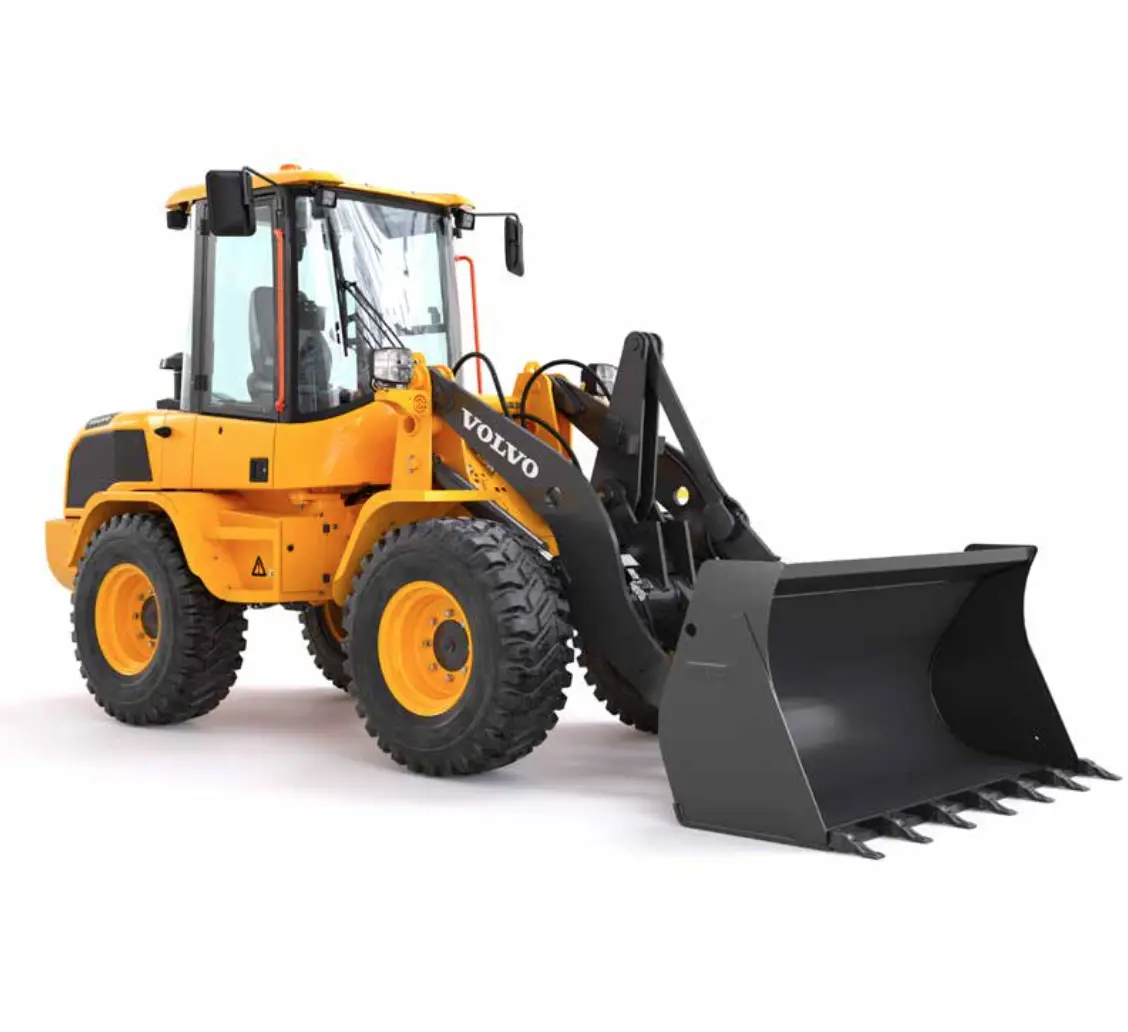

Volvo L35

The versatile L35 operates reliably in tight spaces and uneven terrains. This compact wheel loader boasts fast simultaneous linkage movements and steering, as well as exceptional tractive, breakout and lifting forces, commonly found on larger machines. And the operator experience is second to none, with easy cab access, best-in-class visibility, intuitive controls and exclusive options. It all adds up to productive and more efficient loading cycles.

The versatile L35 operates reliably in tight spaces and uneven terrains. This compact wheel loader boasts fast simultaneous linkage movements and steering, as well as exceptional tractive, breakout and lifting forces, commonly found on larger machines. And the operator experience is second to none, with easy cab access, best-in-class visibility, intuitive controls and exclusive options. It all adds up to productive and more efficient loading cycles.

Read More
L35 - Brochure
Download
Request a Quote Schedule a Demo Contact Us

Main Specs

  • Engine Output - Gross 74 hp (55.4 kW)

Engine

Drivetrain

Performance

Dimensions

Driveline

  • Engine Manufacturer Volvo
  • Engine Model D3.3H
  • Emissions Technology Cooled Exhaust Gas Recirculation
  • After Treatment System Diesel Particulate Filter
  • Displacement 203 Inches³ (3.3 ltr)
  • Rated Speed 2720 rpm
  • Engine Output - Gross 74 hp (55.4 kW)
  • Torque 195 lbf / ft (265 Nm)
  • Transmission Type Hydrostatic
  • Traction Control No
  • Tire Size 405 / 70 R20
  • Hydrostatic System Braking Yes
  • Hydrostatic Brake - Actuation All Wheels
  • Service Brake - Type Disc

Dimensions

  • Wheelbase 7 ft 1 in (2150 mm)
  • Length With Bucket On Ground 17 ft 9 in (5420 mm)
  • Height - Over Cab 9 ft 3 in (2820 mm)
  • Ground Clearance 20 inches (500 mm)
  • Width Over Tires - Std 6 ft 4 in (1939 mm)
  • Bucket Type GP w/Teeth
  • Bucket Width 6 ft 11 in (2100 mm)
  • Full Lift Dump Height 8 ft 9 in (2670 mm)
  • Full Lift Reach 2 ft 5 in (745 mm)
  • Loader - Geometry Z-Bar
  • Dump Angle - At Dump 45 °
  • Dump Angle - Maximum 45 °
  • Height - Pivot Pin 11 ft (3350 mm)
  • Height - Maximum 14 ft 2 in (4325 mm)
  • Turn Radius Over Bucket - Std. 29 ft 6 in (8990 mm)

Capacities

  • Fuel Tank 22.2 gallons (US) (84 ltr)
  • Heaped Capactiy 1.6 yd³ (1.2 m³)
  • Smallest Bucket Capacity 1.3 yd³ (1 m³)
  • Largest Bucket Capacity 2 yd³ (1.5 m³)

Performance

  • Straight Tipping Load 10803 lbs (4900 kg)
  • Full Turn Tipping Load 9590 lbs (4350 kg)
  • Bucket Breakout 13713 lbf (61 kN)
  • Ride Control System Optional
  • Load Sensing Yes

Weights

  • Bucket Capacity 1.3-2 yd³ (1-1.5 m³)
  • Operating Weight 13558 lbs (6150 kg)
