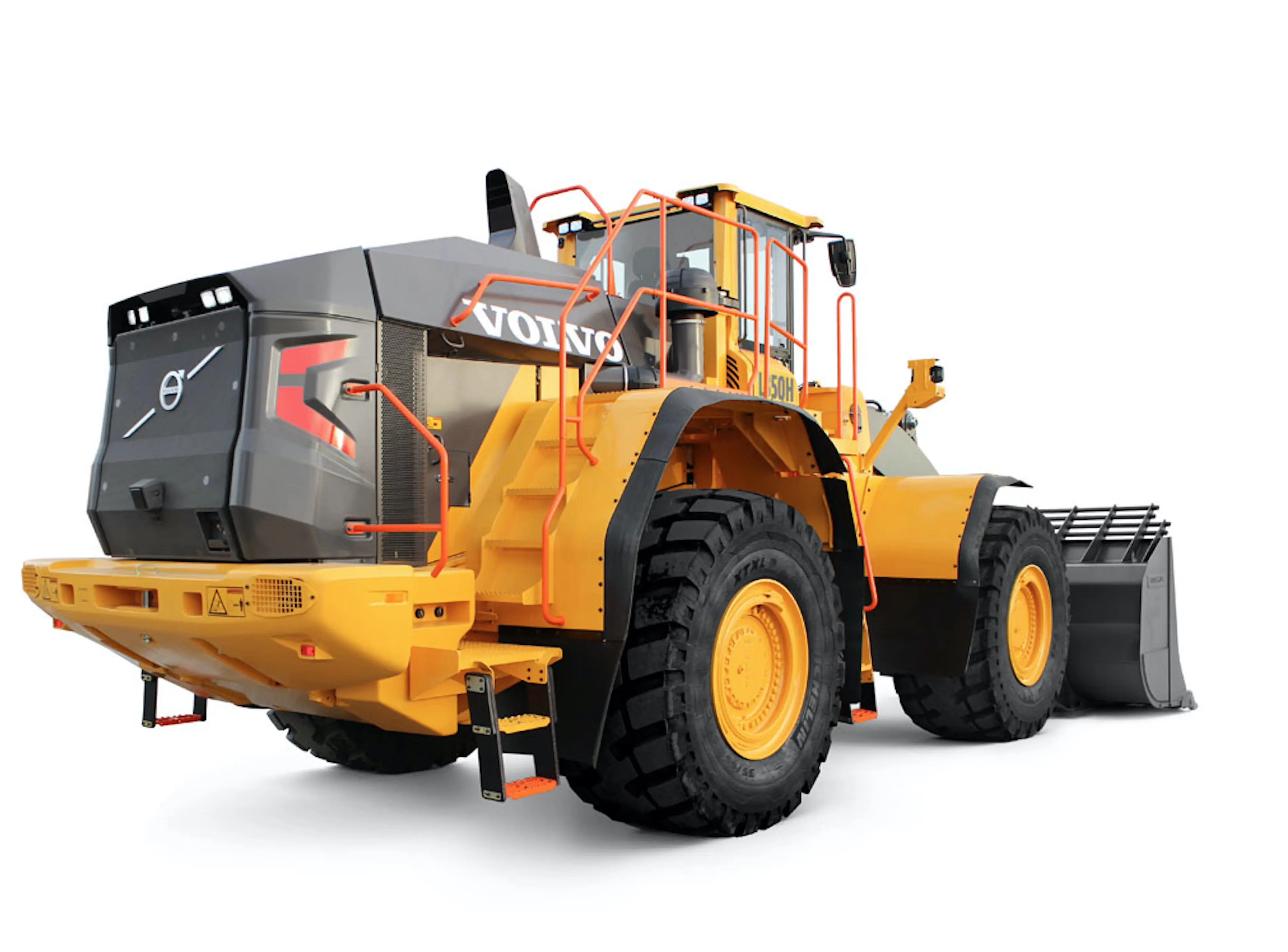

Volvo L350H
Smarter, faster and tougher than the L350F, the L350H has been built on the success of its forerunner, first introduced to the market in 2007. Upgraded with the latest innovative technology, the L350H is ready to tackle a range of applications, from mining and quarrying to heavy infrastructure.
Smarter, faster and tougher than the L350F, the L350H has been built on the success of its forerunner, first introduced to the market in 2007. Upgraded with the latest innovative technology, the L350H is ready to tackle a range of applications, from mining and quarrying to heavy infrastructure.
Volvo Site Simulation
Wheel Loaders in Block Handling
Wheel Loaders in Rock Handling
Wheel Loaders in Slag Handling
Wheel Loaders in Rehandling
Volvo Load Assist
Wheel Loaders in Log Handling
L350H - Brochure
Request a Quote
Schedule a Demo
Contact Us
Driveline
- Engine Manufacturer Volvo
- Engine Model D16J
- Emissions Technology Cooled Exhaust Gas Recirculation
- After Treatment System Diesel Particulate Filter
- Aspiration Var. Geometry Turbo
- Displacement 982 Inches³ (16.1 ltr)
- Rated Speed 1700 rpm
- Engine Output - Net 532 hp (397 kW)
- Torque 1660 lbf / ft (2250 Nm)
- Transmission Type Powershift
- Traction Control Yes
- Tire Manufacturer Goodyear
- Tire Size 875 / 65 R33
- Tire Model RL5K
- Service Brake - Type Wet Multi Disc
Dimensions
- Wheelbase 14 ft 1 in (4300 mm)
- Length With Bucket On Ground 35 ft 7 in (10840 mm)
- Height - Over Cab 13 ft 9 in (4180 mm)
- Ground Clearance 21.7 inches (550 mm)
- Width Over Tires - Std 11 ft 11 in (3630 mm)
- Bucket Type GP w/Bolt-on Edge
- Bucket Width 13 ft (3970 mm)
- Full Lift Dump Height 12 ft 9 in (3880 mm)
- Full Lift Reach 5 ft 5 in (1650 mm)
- Loader - Geometry Z-Bar
- Dump Angle - At Dump 45 °
- Dump Angle - Maximum 46 °
- Height - Pivot Pin 17 ft 6 in (5340 mm)
- Height - Maximum 23 ft 4 in (7120 mm)
- Turn Radius Over Bucket - Std. 29 ft 10 in (9105 mm)
Capacities
- Fuel Tank 143 gallons (US) (540 ltr)
- Heaped Capactiy 9.5 yd³ (7.3 m³)
- Smallest Bucket Capacity 9 yd³ (6.9 m³)
- Largest Bucket Capacity 16.6 yd³ (12.7 m³)
Performance
- Straight Tipping Load 87580 lbs (39720 kg)
- Full Turn Tipping Load 77030 lbs (34930 kg)
- Bucket Breakout 104300 lbf (464 kN)
- Ride Control System Optional
- Oscillation - Rear Axle 24 °
- Load Sensing Yes
Weights
- Bucket Capacity 9-16.6 yd³ (6.9-12.7 m³)
- Operating Weight 112800 lbs (51160 kg)
